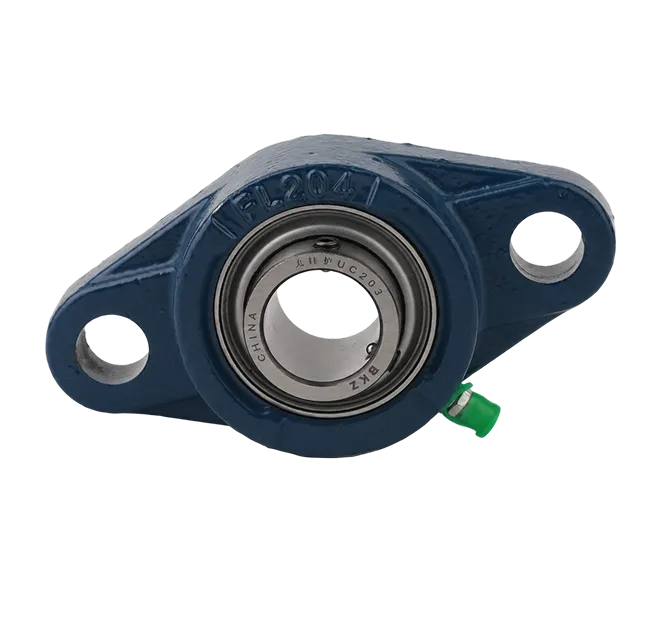

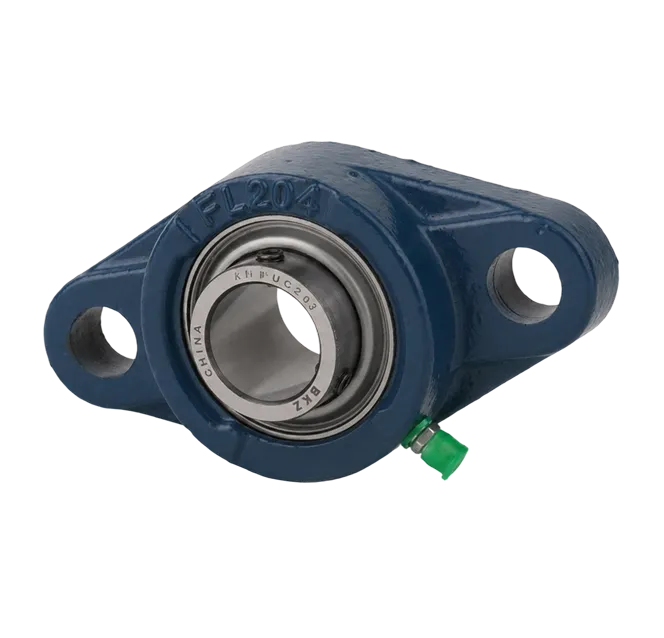

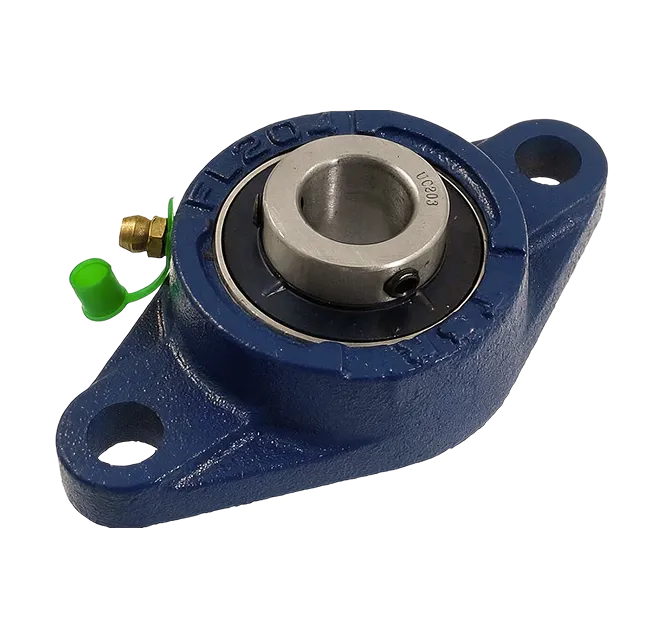

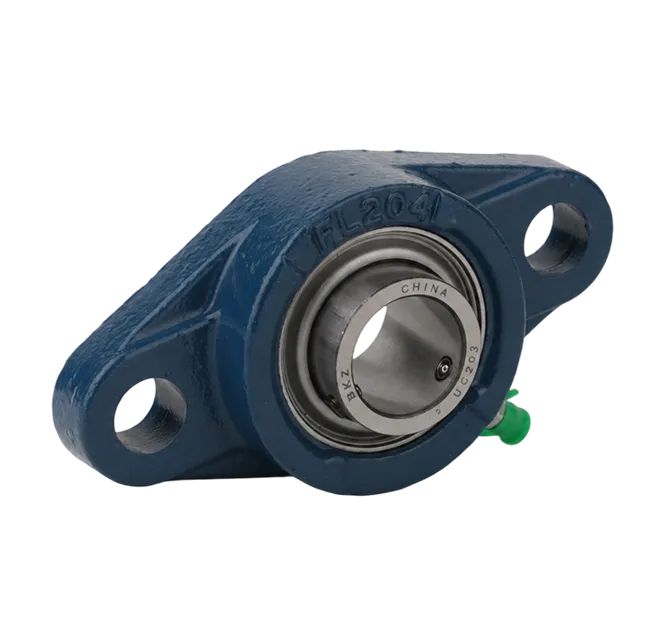

The UCFL203 bearing unit consists of a UC203 insert ball bearing mounted in an FL204 two-bolt flange housing. It features set-screw locking, a durable cast iron housing, and self-aligning capability. UCFL203 bearing units are widely used in conveyor systems, agricultural machinery, packaging equipment, food processing equipment, textile machinery, and other industrial applications. With matching dimensions and quality standards, they can replace equivalent UCFL203 units from other brands.
| Model No. | UCFL203 |
| Insert Bearing Number | UC203 |
| Housing Number | FL204 |
| Rolling Element Type | Ball |
| Mounting Type | 2-Bolt Flange Mount |
| Number of Mounting Holes | 2 |
| Locking Method | Set Screw Locking |
| Number of Set Screws | 2 |
| Bore Diameter / Shaft Diameter | 17 mm |
| Overall Length | 113 mm |
| Overall Width | 60 mm |
| Housing Height / Base Thickness | 25.5 mm |
| Mounting Hole Center Distance | 90 mm |
| Mounting Hole Diameter | 12 mm |
| Housing Side Thickness | 11 mm |
| Housing Shoulder Thickness | 15 mm |
| Total Height from Mounting Surface | 33.3 mm |
| Insert Bearing Inner Ring Width | 31 mm |
| Raceway Center Position | 12.7 mm |
| Mounting Bolt Size | M10 |
| Basic Dynamic Radial Load Rating, Cr | 12.8 kN |
| Basic Static Radial Load Rating, C0r | 6.65 kN |
| Bearing Ring Material | SAE 52100 / GCr15 Bearing Steel / Chrome Steel |
| Ball Material | SAE 52100 / GCr15 Bearing Steel |
| Cage Material | Pressed Steel |
| Housing Material | Cast Iron |
| Seal Type | Sealed on Both Sides |
| Lubrication | Grease |
| Self-Aligning | Yes |
| Duty Type | Standard Duty |
| Weight | Approx. 0.50 kg |
UC203 + FL204 and UC204 + FL204 use the same FL204 housing because both insert bearings have a 47 mm outside diameter. Their main difference is the bore size: 17 mm for UC203 and 20 mm for UC204. UC203 + FL203 uses a smaller housing, typically measuring 99 mm long with a 76.5 mm mounting-hole center distance, while FL204 is 113 mm long with a 90 mm center distance.
Yes. UCFL203 bearing units are manufactured in-house by BKZ Industry, allowing us to offer stable quality, reliable production capacity, and factory-direct pricing. Contact us now for bulk-order quotations.
Yes. We support sample orders so you can inspect and test the UCFL203 bearing units before placing a bulk order.
Yes. We provide OEM services for UCFL203 bearing units, including custom logos on the bearing units and customized packaging.
Yes. We can provide an inspection report for the UCFL203 bearing units before delivery.
UCFL203 bearing units are just one of the many types of bearing units manufactured by BKZ Industry. As a manufacturer of insert bearings, bearing units, bearing housings, deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, and spherical roller bearings, BKZ Industry can supply bearing units in various sizes, as well as many other types of bearings.
