High Speed Bearings

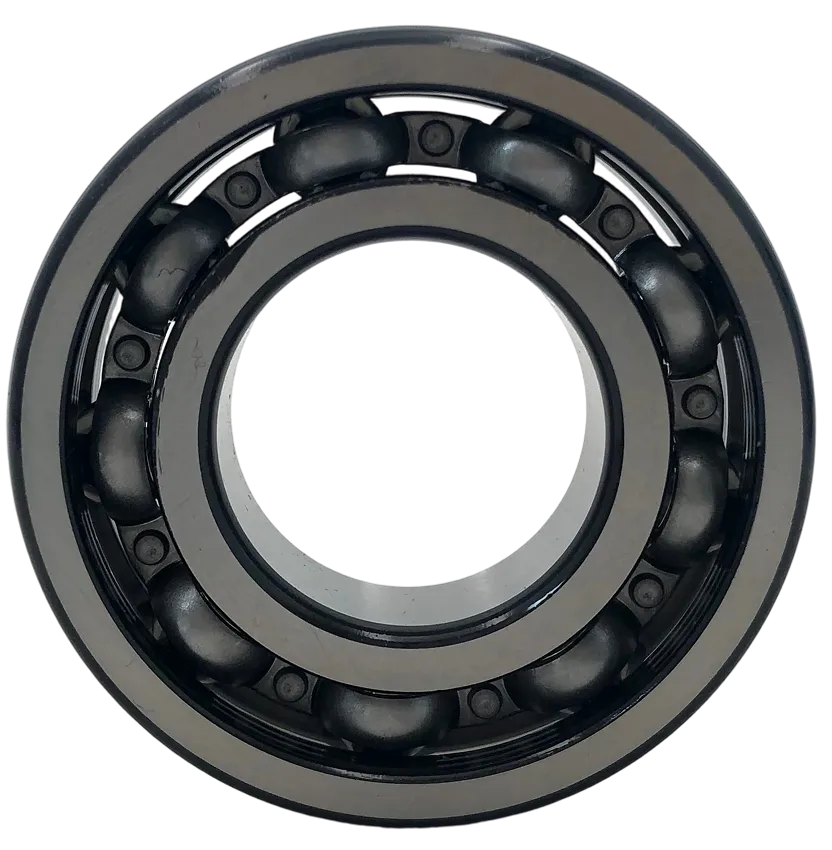

High speed bearings are specifically engineered to operate at high rotational speeds while maintaining low friction, controlled heat generation, running stability, and high accuracy. The speed capability of a bearing is often referenced by the DN value, calculated as bearing bore diameter (mm) × rotational speed (rpm). However, there is no fixed DN value range that defines high speed bearings, because the actual classification also depends on bearing type, internal design, precision grade, cage design, lubrication method, preload, and operating conditions.
As an experienced high speed bearing factory, BKZ Industry can produce high speed angular contact ball bearings, high speed deep groove ball bearings, high speed cylindrical roller bearings, hybrid ceramic bearings, and other bearings for high speed applications. Depending on application requirements, materials can include high carbon chromium bearing steel, M50 steel, silicon nitride ceramic rolling elements, PEEK or other high-performance cages, and stainless steel for specific operating environments.
With 2 factories, 400+ employees, 15+ production lines, ISO 9001 certification, and 15 years of bearing manufacturing experience, BKZ Industry can provide high speed bearing solutions based on your speed, load, lubrication, precision, and application requirements. We also offer customized solutions and OEM service.

Benefits and Advantages of BKZ Industry High Speed Bearings

A quick overview of how high speed bearings improve performance and how BKZ Industry supports reliable bearing solutions for demanding operating conditions.

Features and Benefits of High Speed Bearings

Higher Speed Capability

Smaller or lighter rolling elements and low-drag cage designs help reduce centrifugal force and running resistance at high speed, while optimized internal geometry further supports stable operation at higher rotational speeds.

Lower Friction and Temperature Rise

Precision-finished raceways, optimized internal geometry, and suitable lubrication conditions help the rolling elements move more smoothly, reducing sliding losses, lowering friction, and controlling temperature rise during high-speed operation.

Better Running Accuracy

High geometric and dimensional accuracy of the raceways, rings, and rolling elements helps maintain more consistent rolling contact, improving rotational stability, reducing vibration, and supporting better running accuracy.

High Stiffness

Proper preload and optimized contact geometry help the bearing maintain firm internal support under load, reducing deflection and improving rigidity while supporting stable shaft positioning.

Longer Service Life

Lubrication-friendly internal design and optimized load distribution help maintain an effective lubricant film, reduce wear and heat build-up, and extend bearing service life under high-speed operating conditions.

Why Choose BKZ Industry

With Our Own Engineering Team

BKZ Industry has its own engineering team with experience in high speed bearing applications. We understand key technical factors such as DN value, preload, lubrication methods, cage design, and material selection, and can help select and develop bearing solutions based on your specific operating requirements.

Extensive Experience in Bearing Manufacturing

BKZ Industry has more than 15 years of bearing manufacturing experience. With 15+ production lines and 2 factories, we can produce bearings according to your technical requirements, application needs, and quality standards.

Strict Material and Manufacturing Control

BKZ Industry understands the importance of material quality and manufacturing control for bearing performance. We carry out strict material inspection, heat treatment control, speed testing, temperature rise testing, noise and vibration inspection, dimensional inspection, and life testing to help ensure stable bearing quality.

Professional Export Experience Worldwide

With 15 years of export experience in the bearing industry, BKZ Industry understands international shipping procedures, documentation requirements, and export processes. We work to deliver bearings to customers worldwide on time and smoothly.

Certifications

BKZ Industry is ISO 9001 certified. If your project requires additional product certifications or specific compliance standards, we can discuss them further after reaching an agreement on technical and commercial requirements.

Types of Bearings for High Speed Applications

High speed bearings are available in many types, including different high speed ball bearings and high speed roller bearings.

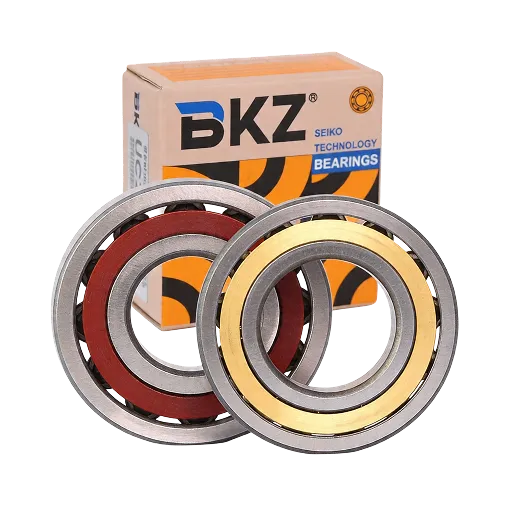

High Speed Angular Contact Ball Bearings

Built with a defined contact angle, this type can handle radial load together with axial load while maintaining high rotational accuracy at high speed. Optimized preload, precision raceway geometry, and high-speed cages help control friction and running stability. Commonly used in machine tool spindles, precision motors, pumps, compressors, and other equipment requiring accurate high-speed rotation.

Get a Quote >>

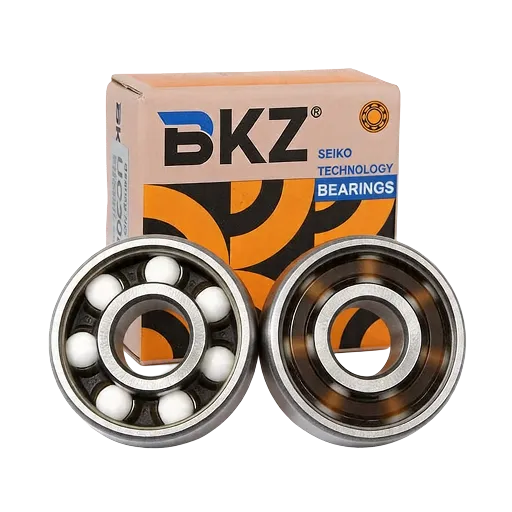

High Speed Hybrid Ceramic Ball Bearings

Using steel rings with silicon nitride ceramic balls, this type is especially suitable for high speed because the ceramic balls are lighter, generate lower centrifugal force, and produce less heat. It also offers smoother acceleration and better electrical insulation. Commonly used in high-speed spindles, electric motors, robotics, dental equipment, and precision machinery.

Get a Quote >>

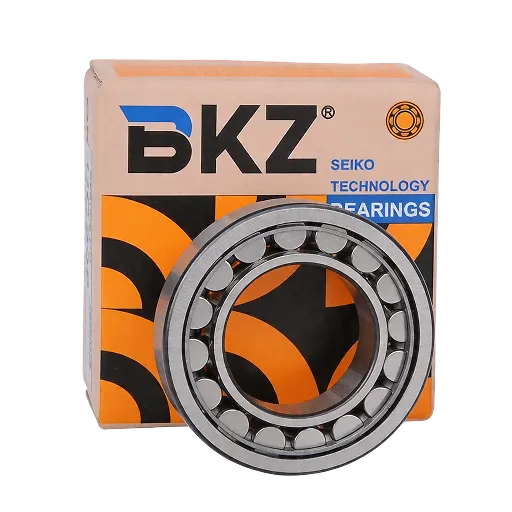

High Speed Cylindrical Roller Bearings

With cylindrical rollers and line contact, this type stands out for combining high radial load capacity with good speed performance. Optimized roller guidance, precision raceway finishing, and advanced cage materials help support stable running at high rotational speed. It is widely used in machine tool spindles, high-speed gearboxes, motors, generators, and transmission systems.

Get a Quote >>

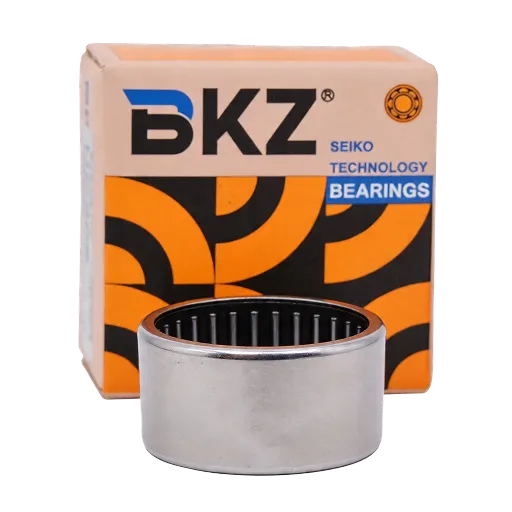

High Speed Needle Roller Bearings

This type uses long, slender rollers to provide high load capacity in a compact radial space, making it suitable for high-speed applications where installation space is limited. Precision guidance, proper lubrication design, and high-quality bearing steel help reduce friction and temperature rise. Commonly used in compact transmissions, compressors, automotive components, textile machinery, and power tools.

Get a Quote >>

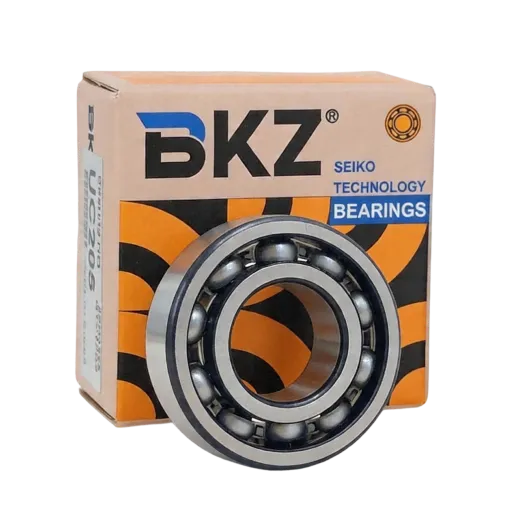

High Speed Deep Groove Ball Bearings

Featuring deep raceway grooves and a simple internal structure, this type is widely used for high-speed operation with low friction and smooth running performance. Precision rings and balls, optimized internal clearance, and suitable cage design help maintain stable rotation at high speed. It is commonly found in electric motors, fans, pumps, gearboxes, and general industrial machinery.

Get a Quote >>

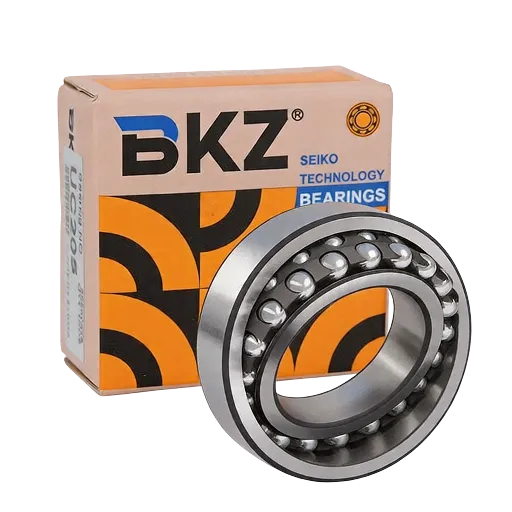

High Speed Self-aligning Ball Bearings

With two rows of balls and a spherical outer ring raceway, this type is suitable for high-speed use where shaft deflection or mounting misalignment may occur. Its self-aligning structure helps maintain stable running while keeping friction relatively low. Commonly used in fans, blowers, conveyors, textile equipment, agricultural machinery, and other light industrial equipment.

Get a Quote >>

*Other types not listed here are also available from BKZ Industry. Please contact us for more details.

High Speed Bearing Size Chart

High speed bearings are not a separate standard bearing series, so there is no dedicated ISO size chart for them. They are developed from different bearing types with enhanced speed capability through optimized cage design, preload, precision class, and material selection. Below are some high speed bearings we have manufactured for previous customers for reference. For your specific application requirements, please contact us directly.

Bearing Number	Bearing Type	Bore Diameter d (mm)	Outside Diameter D (mm)	Width B (mm)	Contact Angle α (°)	Dynamic Load Rating C (N)	Static Load Rating C0 (N)	Limiting Speed (Grease) (r/min)	Limiting Speed (Oil) (r/min)	Reference Speed (r/min)	DN Value (mm·r/min)	Precision Class	Internal Clearance / Preload	Cage Material	Rolling Element Material	Ring Material	Lubrication Method	Weight (kg)
71800C	High Speed Angular Contact Ball Bearings	10	17	6	15	2641	1902	70200	90000	55800	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.005
71801C	High Speed Angular Contact Ball Bearings	12	20	6	15	3123	2249	58500	75000	46500	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.007
71802C	High Speed Angular Contact Ball Bearings	15	24	7	15	4086	2942	46800	60000	37200	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.011
71803C	High Speed Angular Contact Ball Bearings	17	26	7	15	4460	3211	41294	52941	32823	899997	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.012
71804C	High Speed Angular Contact Ball Bearings	20	30	7	15	5158	3714	35100	45000	27900	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.015
71805C	High Speed Angular Contact Ball Bearings	25	37	8	15	6808	4902	28080	36000	22320	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.026
71806C	High Speed Angular Contact Ball Bearings	30	44	9	15	8593	6187	23400	30000	18600	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.04
71807C	High Speed Angular Contact Ball Bearings	35	50	10	15	10300	7416	20057	25714	15943	899990	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.055
71808C	High Speed Angular Contact Ball Bearings	40	57	11	15	12316	8867	17550	22500	13950	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.078
71809C	High Speed Angular Contact Ball Bearings	45	63	12	15	14210	10231	15600	20000	12400	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.101
71810C	High Speed Angular Contact Ball Bearings	50	70	12	15	15789	11368	14040	18000	11160	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.124
71811C	High Speed Angular Contact Ball Bearings	55	77	13	15	18077	13016	12764	16364	10146	900020	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.163
71812C	High Speed Angular Contact Ball Bearings	60	83	14	15	20205	14548	11700	15000	9300	900000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.199
71813C	High Speed Angular Contact Ball Bearings	65	90	15	15	22680	16330	11126	14264	8844	927160	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.251
71814C	High Speed Angular Contact Ball Bearings	70	96	16	15	24963	17974	10721	13745	8522	962150	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.298
71815C	High Speed Angular Contact Ball Bearings	75	103	17	15	27612	19881	10358	13279	8233	995925	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.366
71816C	High Speed Angular Contact Ball Bearings	80	110	18	15	30347	21850	10028	12857	7971	1028560	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.443
71817C	High Speed Angular Contact Ball Bearings	85	116	18	15	31976	23022	9730	12474	7734	1060290	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.484
71818C	High Speed Angular Contact Ball Bearings	90	123	19	15	34840	25085	9455	12122	7516	1090980	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.576
71819C	High Speed Angular Contact Ball Bearings	95	129	20	15	37458	26970	9203	11799	7315	1120905	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.657
71820C	High Speed Angular Contact Ball Bearings	100	136	21	15	40475	29142	8970	11500	7130	1150000	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.77
71821C	High Speed Angular Contact Ball Bearings	105	143	22	15	43567	31368	8754	11223	6958	1178415	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	0.895
71822C	High Speed Angular Contact Ball Bearings	110	149	23	15	46381	33394	8553	10965	6798	1206150	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	1.003
71823C	High Speed Angular Contact Ball Bearings	115	156	24	15	49615	35723	8365	10724	6649	1233260	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	1.151
71824C	High Speed Angular Contact Ball Bearings	120	162	24	15	51486	37070	8188	10498	6509	1259760	P4	Light preload	Phenolic resin	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Grease	1.227
71900C	High Speed Angular Contact Ball Bearings	10	19	7	15	3230	2326	66300	85000	52700	850000	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.008
71901C	High Speed Angular Contact Ball Bearings	12	22	7	15	3787	2727	55250	70833	43916	849996	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.01
71902C	High Speed Angular Contact Ball Bearings	15	26	8	15	4871	3507	44200	56667	35134	850005	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.016
71903C	High Speed Angular Contact Ball Bearings	17	29	8	15	5457	3929	39000	50000	31000	850000	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.019
71904C	High Speed Angular Contact Ball Bearings	20	33	9	15	6643	4783	33150	42500	26350	850000	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.027
71905C	High Speed Angular Contact Ball Bearings	25	40	10	15	8546	6153	26520	34000	21080	850000	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.042
71906C	High Speed Angular Contact Ball Bearings	30	48	11	15	10756	7744	22100	28333	17566	849990	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.067
71907C	High Speed Angular Contact Ball Bearings	35	55	12	15	12916	9299	18943	24286	15057	850010	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.093
71908C	High Speed Angular Contact Ball Bearings	40	62	13	15	15188	10936	16575	21250	13175	850000	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.126
71909C	High Speed Angular Contact Ball Bearings	45	69	14	15	17569	12650	14733	18889	11711	850005	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.165
71910C	High Speed Angular Contact Ball Bearings	50	76	14	15	19373	13949	13260	17000	10540	850000	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.198
71911C	High Speed Angular Contact Ball Bearings	55	83	15	15	21919	15782	12055	15455	9582	850025	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.25
71912C	High Speed Angular Contact Ball Bearings	60	90	16	15	24563	17685	11077	14201	8805	852060	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.311
71913C	High Speed Angular Contact Ball Bearings	65	97	17	15	27301	19657	10642	13644	8459	886860	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.38
71914C	High Speed Angular Contact Ball Bearings	70	104	18	15	30131	21695	10255	13148	8152	920360	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.46
71915C	High Speed Angular Contact Ball Bearings	75	112	19	15	33324	23993	9908	12702	7875	952650	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.567
71916C	High Speed Angular Contact Ball Bearings	80	119	20	15	36339	26164	9592	12298	7625	983840	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.67
71917C	High Speed Angular Contact Ball Bearings	85	126	21	15	39437	28395	9306	11931	7397	1014135	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.784
71918C	High Speed Angular Contact Ball Bearings	90	133	22	15	42618	30685	9044	11595	7189	1043550	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	0.91
71919C	High Speed Angular Contact Ball Bearings	95	140	23	15	45878	33032	8803	11286	6997	1072170	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	1.05
71920C	High Speed Angular Contact Ball Bearings	100	147	24	15	49216	35435	8580	11000	6820	1100000	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	1.202
71921C	High Speed Angular Contact Ball Bearings	105	154	25	15	52630	37893	8373	10735	6656	1127175	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	1.369
71922C	High Speed Angular Contact Ball Bearings	110	161	26	15	56118	40405	8181	10488	6503	1153680	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	1.551
71923C	High Speed Angular Contact Ball Bearings	115	168	27	15	59679	42969	8001	10258	6360	1179670	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	1.748
71924C	High Speed Angular Contact Ball Bearings	120	175	28	15	63312	45585	7833	10042	6226	1205040	P4	Light preload	PEEK	Si3N4 ceramic balls	High carbon chromium bearing steel	Oil-air / Oil mist	1.961
7000C	High Speed Angular Contact Ball Bearings	10	21	7	15	3757	2705	58500	75000	46500	750000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.01
7001C	High Speed Angular Contact Ball Bearings	12	24	8	15	4684	3372	48750	62500	38750	750000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.015
7002C	High Speed Angular Contact Ball Bearings	15	29	9	15	6083	4380	39000	50000	31000	750000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.024
7003C	High Speed Angular Contact Ball Bearings	17	33	9	15	6911	4976	34412	44118	27353	750006	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.031
7004C	High Speed Angular Contact Ball Bearings	20	37	10	15	8313	5985	29250	37500	23250	750000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.042
7005C	High Speed Angular Contact Ball Bearings	25	46	11	15	10859	7819	23400	30000	18600	750000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.071
7006C	High Speed Angular Contact Ball Bearings	30	54	12	15	13413	9657	19500	25000	15500	750000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.104
7007C	High Speed Angular Contact Ball Bearings	35	62	13	15	16110	11600	16715	21429	13286	750015	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.147
7008C	High Speed Angular Contact Ball Bearings	40	70	15	15	19611	14120	14625	18750	11625	750000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.214
7009C	High Speed Angular Contact Ball Bearings	45	78	16	15	22633	16296	13000	16667	10334	750015	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.28
7010C	High Speed Angular Contact Ball Bearings	50	86	17	15	25779	18561	11700	15000	9300	750000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.359
7011C	High Speed Angular Contact Ball Bearings	55	94	18	15	29046	20913	10636	13636	8454	749980	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.451
7012C	High Speed Angular Contact Ball Bearings	60	102	19	15	32429	23349	10070	12910	8004	774600	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.558
7013C	High Speed Angular Contact Ball Bearings	65	110	21	15	36812	26505	9674	12403	7690	806195	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.714
7014C	High Speed Angular Contact Ball Bearings	70	118	22	15	40461	29132	9323	11952	7410	836640	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	0.857
7015C	High Speed Angular Contact Ball Bearings	75	127	23	15	44472	32020	9007	11547	7159	866025	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	1.043
7016C	High Speed Angular Contact Ball Bearings	80	135	24	15	48334	34801	8720	11180	6932	894400	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	1.225
7017C	High Speed Angular Contact Ball Bearings	85	143	25	15	52296	37653	8461	10847	6725	921995	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	1.427
7018C	High Speed Angular Contact Ball Bearings	90	151	27	15	57429	41349	8222	10541	6535	948690	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	1.713
7019C	High Speed Angular Contact Ball Bearings	95	159	28	15	61620	44366	8003	10260	6361	974700	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	1.964
7020C	High Speed Angular Contact Ball Bearings	100	167	29	15	65902	47450	7800	10000	6200	1000000	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	2.239
7021C	High Speed Angular Contact Ball Bearings	105	175	30	15	70275	50598	7612	9759	6051	1024695	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	2.538
7022C	High Speed Angular Contact Ball Bearings	110	183	31	15	74736	53810	7437	9535	5912	1048850	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	2.862
7023C	High Speed Angular Contact Ball Bearings	115	191	33	15	80513	57970	7274	9325	5782	1072375	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	3.312
7024C	High Speed Angular Contact Ball Bearings	120	199	34	15	85179	61329	7121	9129	5660	1095480	P5	Light to medium preload	Phenolic resin	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil-air	3.698
7200C	High Speed Angular Contact Ball Bearings	10	24	9	25	4978	3584	50700	65000	40300	650000	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.018
7201C	High Speed Angular Contact Ball Bearings	12	28	9	25	5887	4238	42250	54167	33584	650004	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.025
7202C	High Speed Angular Contact Ball Bearings	15	33	10	25	7515	5411	33800	43333	26866	649995	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.037
7203C	High Speed Angular Contact Ball Bearings	17	37	11	25	8880	6394	29823	38235	23706	649995	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.051
7204C	High Speed Angular Contact Ball Bearings	20	42	12	25	10694	7699	25350	32500	20150	650000	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.071
7205C	High Speed Angular Contact Ball Bearings	25	52	13	25	13837	9962	20280	26000	16120	650000	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.117
7206C	High Speed Angular Contact Ball Bearings	30	61	14	25	17004	12243	16900	21667	13434	650010	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.17
7207C	High Speed Angular Contact Ball Bearings	35	70	16	25	21000	15120	14485	18571	11514	649985	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.254
7208C	High Speed Angular Contact Ball Bearings	40	79	17	25	24551	17677	12675	16250	10075	650000	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.341
7209C	High Speed Angular Contact Ball Bearings	45	88	19	25	29024	20897	11266	14444	8955	649980	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.469
7210C	High Speed Angular Contact Ball Bearings	50	97	20	25	32924	23705	10479	13435	8330	671750	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.596
7211C	High Speed Angular Contact Ball Bearings	55	106	21	25	36959	26611	9992	12810	7942	704550	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.744
7212C	High Speed Angular Contact Ball Bearings	60	115	23	25	42050	30276	9566	12264	7604	735840	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.955
7213C	High Speed Angular Contact Ball Bearings	65	124	24	25	46397	33406	9191	11783	7305	765895	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.155
7214C	High Speed Angular Contact Ball Bearings	70	133	26	25	51874	37349	8857	11355	7040	794850	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.435
7215C	High Speed Angular Contact Ball Bearings	75	142	27	25	56512	40688	8557	10970	6801	822750	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.694
7216C	High Speed Angular Contact Ball Bearings	80	152	28	25	61522	44296	8284	10621	6585	849680	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.019
7217C	High Speed Angular Contact Ball Bearings	85	161	30	25	67529	48621	8037	10304	6388	875840	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.421
7218C	High Speed Angular Contact Ball Bearings	90	170	31	25	72555	52240	7811	10014	6209	901260	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.783
7219C	High Speed Angular Contact Ball Bearings	95	179	33	25	78893	56803	7603	9747	6043	925965	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	3.278
7220C	High Speed Angular Contact Ball Bearings	100	188	34	25	84174	60605	7410	9500	5890	950000	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	3.719
7221C	High Speed Angular Contact Ball Bearings	105	197	35	25	89556	64480	7231	9271	5748	973455	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	4.197
7222C	High Speed Angular Contact Ball Bearings	110	206	37	25	96349	69371	7065	9058	5616	996380	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	4.844
7223C	High Speed Angular Contact Ball Bearings	115	215	38	25	101970	73418	6910	8859	5493	1018785	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	5.412
7224C	High Speed Angular Contact Ball Bearings	120	224	40	25	109058	78522	6764	8672	5377	1040640	P5	Medium preload	Machined brass	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	6.176
N1000	High Speed Cylindrical Roller Bearings	10	22	8	–	8166	7186	54600	70000	43400	700000	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.016
N1001	High Speed Cylindrical Roller Bearings	12	25	9	–	10146	8929	45500	58333	36166	699996	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.022
N1002	High Speed Cylindrical Roller Bearings	15	29	10	–	12824	11285	36400	46667	28934	700005	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.031
N1003	High Speed Cylindrical Roller Bearings	17	32	11	–	15090	13279	32117	41176	25529	699992	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.041
N1004	High Speed Cylindrical Roller Bearings	20	37	12	–	18461	16246	27300	35000	21700	700000	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.059
N1005	High Speed Cylindrical Roller Bearings	25	45	13	–	23703	20859	21840	28000	17360	700000	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.092
N1006	High Speed Cylindrical Roller Bearings	30	52	15	–	30065	26457	18200	23333	14466	699990	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.137
N1007	High Speed Cylindrical Roller Bearings	35	60	17	–	37464	32968	15600	20000	12400	700000	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.204
N1008	High Speed Cylindrical Roller Bearings	40	68	18	–	43998	38718	13650	17500	10850	700000	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.275
N1009	High Speed Cylindrical Roller Bearings	45	76	20	–	52433	46141	12134	15556	9645	700020	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.379
N1010	High Speed Cylindrical Roller Bearings	50	84	22	–	61408	54039	10920	14000	8680	700000	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.507
N1011	High Speed Cylindrical Roller Bearings	55	91	23	–	68454	60240	9927	12727	7891	699985	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.611
N1012	High Speed Cylindrical Roller Bearings	60	99	25	–	78317	68919	9100	11667	7234	700020	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.784
N1013	High Speed Cylindrical Roller Bearings	65	107	26	–	86684	76282	8707	11163	6921	725595	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.95
N1014	High Speed Cylindrical Roller Bearings	70	114	28	–	96658	85059	8390	10757	6669	752990	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	1.146
N1015	High Speed Cylindrical Roller Bearings	75	122	30	–	107825	94886	8106	10392	6443	779400	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	1.404
N1016	High Speed Cylindrical Roller Bearings	80	130	31	–	117189	103127	7848	10062	6238	804960	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	1.646
N1017	High Speed Cylindrical Roller Bearings	85	138	33	–	129167	113667	7614	9762	6052	829770	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	1.972
N1018	High Speed Cylindrical Roller Bearings	90	146	35	–	141575	124586	7400	9487	5882	853830	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	2.339
N1019	High Speed Cylindrical Roller Bearings	95	153	36	–	150982	132864	7203	9234	5725	877230	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	2.618
N1020	High Speed Cylindrical Roller Bearings	100	161	38	–	164119	144425	7020	9000	5580	900000	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	3.059
N1021	High Speed Cylindrical Roller Bearings	105	169	40	–	177662	156343	6851	8783	5445	922215	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	3.546
N1022	High Speed Cylindrical Roller Bearings	110	176	41	–	187862	165318	6693	8581	5320	943910	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	3.913
N1023	High Speed Cylindrical Roller Bearings	115	184	43	–	202095	177843	6547	8393	5204	965195	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	4.485
N1024	High Speed Cylindrical Roller Bearings	120	192	45	–	216713	190707	6408	8216	5094	985920	P5	C3	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	5.111
NU1000	High Speed Cylindrical Roller Bearings	10	22	8	–	8329	7329	54600	70000	43400	700000	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.016
NU1001	High Speed Cylindrical Roller Bearings	12	25	9	–	10349	9107	45500	58333	36166	699996	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.022
NU1002	High Speed Cylindrical Roller Bearings	15	29	10	–	13081	11511	36400	46667	28934	700005	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.031
NU1003	High Speed Cylindrical Roller Bearings	17	32	11	–	15392	13545	32117	41176	25529	699992	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.041
NU1004	High Speed Cylindrical Roller Bearings	20	37	12	–	18830	16571	27300	35000	21700	700000	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.059
NU1005	High Speed Cylindrical Roller Bearings	25	45	13	–	24177	21276	21840	28000	17360	700000	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.092
NU1006	High Speed Cylindrical Roller Bearings	30	52	15	–	30666	26986	18200	23333	14466	699990	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.137
NU1007	High Speed Cylindrical Roller Bearings	35	60	17	–	38213	33628	15600	20000	12400	700000	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.204
NU1008	High Speed Cylindrical Roller Bearings	40	68	18	–	44878	39492	13650	17500	10850	700000	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.275
NU1009	High Speed Cylindrical Roller Bearings	45	76	20	–	53482	47064	12134	15556	9645	700020	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.379
NU1010	High Speed Cylindrical Roller Bearings	50	84	22	–	62636	55120	10920	14000	8680	700000	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.507
NU1011	High Speed Cylindrical Roller Bearings	55	91	23	–	69823	61445	9927	12727	7891	699985	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.611
NU1012	High Speed Cylindrical Roller Bearings	60	99	25	–	79884	70298	9100	11667	7234	700020	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.784
NU1013	High Speed Cylindrical Roller Bearings	65	107	26	–	88417	77807	8514	10915	6767	709475	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	0.95
NU1014	High Speed Cylindrical Roller Bearings	70	114	28	–	98592	86761	8204	10518	6521	736260	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	1.146
NU1015	High Speed Cylindrical Roller Bearings	75	122	30	–	109982	96784	7926	10161	6300	762075	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	1.404
NU1016	High Speed Cylindrical Roller Bearings	80	130	31	–	119533	105189	7674	9839	6100	787120	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	1.646
NU1017	High Speed Cylindrical Roller Bearings	85	138	33	–	131750	115940	7445	9545	5918	811325	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	1.972
NU1018	High Speed Cylindrical Roller Bearings	90	146	35	–	144407	127078	7235	9276	5751	834840	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	2.339
NU1019	High Speed Cylindrical Roller Bearings	95	153	36	–	154001	135521	7043	9029	5598	857755	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	2.618
NU1020	High Speed Cylindrical Roller Bearings	100	161	38	–	167401	147313	6864	8800	5456	880000	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	3.059
NU1021	High Speed Cylindrical Roller Bearings	105	169	40	–	181215	159469	6699	8588	5325	901740	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	3.546
NU1022	High Speed Cylindrical Roller Bearings	110	176	41	–	191619	168625	6544	8390	5202	922900	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	3.913
NU1023	High Speed Cylindrical Roller Bearings	115	184	43	–	206136	181400	6401	8206	5088	943690	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	4.485
NU1024	High Speed Cylindrical Roller Bearings	120	192	45	–	221047	194521	6266	8033	4980	963960	P5	C3	PEEK	Bearing steel rollers	High carbon chromium bearing steel	Oil-air / Oil mist	5.111
N200	High Speed Cylindrical Roller Bearings	10	26	10	–	11873	10448	42900	55000	34100	550000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.029
N201	High Speed Cylindrical Roller Bearings	12	30	11	–	14749	12979	35750	45833	28416	549996	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.042
N202	High Speed Cylindrical Roller Bearings	15	35	12	–	18640	16403	28600	36667	22734	550005	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.061
N203	High Speed Cylindrical Roller Bearings	17	39	13	–	21934	19302	25235	32353	20059	550001	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.081
N204	High Speed Cylindrical Roller Bearings	20	44	14	–	26275	23122	21450	27500	17050	550000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.109
N205	High Speed Cylindrical Roller Bearings	25	53	16	–	34734	30566	17160	22000	13640	550000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.177
N206	High Speed Cylindrical Roller Bearings	30	62	18	–	43976	38699	14300	18333	11366	549990	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.268
N207	High Speed Cylindrical Roller Bearings	35	71	19	–	52327	46047	12257	15714	9743	549990	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.367
N208	High Speed Cylindrical Roller Bearings	40	80	21	–	62880	55334	10725	13750	8525	550000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.51
N209	High Speed Cylindrical Roller Bearings	45	89	23	–	74123	65228	9535	12224	7579	550080	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.686
N210	High Speed Cylindrical Roller Bearings	50	98	24	–	83948	73875	9046	11597	7190	579850	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.862
N211	High Speed Cylindrical Roller Bearings	55	107	26	–	96370	84806	8624	11057	6855	608135	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	1.107
N212	High Speed Cylindrical Roller Bearings	60	116	28	–	109416	96286	8257	10586	6563	635160	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	1.395
N213	High Speed Cylindrical Roller Bearings	65	125	30	–	123067	108299	7933	10171	6306	661115	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	1.729
N214	High Speed Cylindrical Roller Bearings	70	134	32	–	137305	120829	7645	9801	6077	686070	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	2.112
N215	High Speed Cylindrical Roller Bearings	75	143	33	–	149416	131486	7386	9469	5871	710175	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	2.473
N216	High Speed Cylindrical Roller Bearings	80	152	35	–	164678	144917	7151	9168	5684	733440	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	2.956
N217	High Speed Cylindrical Roller Bearings	85	161	37	–	180488	158830	6937	8894	5514	755990	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	3.497
N218	High Speed Cylindrical Roller Bearings	90	170	38	–	193789	170535	6742	8644	5359	777960	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	3.996
N219	High Speed Cylindrical Roller Bearings	95	179	40	–	210559	185292	6562	8413	5216	799235	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	4.654
N220	High Speed Cylindrical Roller Bearings	100	188	42	–	227845	200503	6396	8200	5084	820000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	5.381
N221	High Speed Cylindrical Roller Bearings	105	197	44	–	245635	216159	6242	8002	4961	840210	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	6.18
N222	High Speed Cylindrical Roller Bearings	110	206	46	–	263922	232251	6098	7818	4847	859980	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	7.055
N223	High Speed Cylindrical Roller Bearings	115	215	47	–	279147	245649	5965	7647	4741	879405	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	7.841
N224	High Speed Cylindrical Roller Bearings	120	224	49	–	298310	262513	5839	7486	4641	898320	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	8.863
NU200	High Speed Cylindrical Roller Bearings	10	26	10	–	12183	10721	42900	55000	34100	550000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.029
NU201	High Speed Cylindrical Roller Bearings	12	30	11	–	15134	13318	35750	45833	28416	549996	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.042
NU202	High Speed Cylindrical Roller Bearings	15	35	12	–	19126	16831	28600	36667	22734	550005	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.061
NU203	High Speed Cylindrical Roller Bearings	17	39	13	–	22507	19806	25235	32353	20059	550001	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.081
NU204	High Speed Cylindrical Roller Bearings	20	44	14	–	26960	23725	21450	27500	17050	550000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.109
NU205	High Speed Cylindrical Roller Bearings	25	53	16	–	35640	31364	17160	22000	13640	550000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.177
NU206	High Speed Cylindrical Roller Bearings	30	62	18	–	45123	39708	14300	18333	11366	549990	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.268
NU207	High Speed Cylindrical Roller Bearings	35	71	19	–	53692	47249	12257	15714	9743	549990	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.367
NU208	High Speed Cylindrical Roller Bearings	40	80	21	–	64520	56778	10725	13750	8525	550000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.51
NU209	High Speed Cylindrical Roller Bearings	45	89	23	–	76057	66930	9533	12222	7578	549990	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.686
NU210	High Speed Cylindrical Roller Bearings	50	98	24	–	86138	75802	8825	11314	7015	565700	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	0.862
NU211	High Speed Cylindrical Roller Bearings	55	107	26	–	98884	87018	8414	10787	6688	593285	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	1.107
NU212	High Speed Cylindrical Roller Bearings	60	116	28	–	112270	98798	8056	10328	6403	619680	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	1.395
NU213	High Speed Cylindrical Roller Bearings	65	125	30	–	126277	111124	7740	9923	6152	644995	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	1.729
NU214	High Speed Cylindrical Roller Bearings	70	134	32	–	140887	123981	7458	9562	5928	669340	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	2.112
NU215	High Speed Cylindrical Roller Bearings	75	143	33	–	153314	134916	7206	9238	5728	692850	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	2.473
NU216	High Speed Cylindrical Roller Bearings	80	152	35	–	168974	148697	6976	8944	5545	715520	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	2.956
NU217	High Speed Cylindrical Roller Bearings	85	161	37	–	185197	162973	6768	8677	5380	737545	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	3.497
NU218	High Speed Cylindrical Roller Bearings	90	170	38	–	198845	174983	6578	8433	5228	758970	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	3.996
NU219	High Speed Cylindrical Roller Bearings	95	179	40	–	216052	190126	6402	8208	5089	779760	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	4.654
NU220	High Speed Cylindrical Roller Bearings	100	188	42	–	233789	205734	6240	8000	4960	800000	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	5.381
NU221	High Speed Cylindrical Roller Bearings	105	197	44	–	252043	221798	6089	7807	4840	819735	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	6.18
NU222	High Speed Cylindrical Roller Bearings	110	206	46	–	270807	238310	5950	7628	4729	839080	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	7.055
NU223	High Speed Cylindrical Roller Bearings	115	215	47	–	286429	252058	5819	7460	4625	857900	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	7.841
NU224	High Speed Cylindrical Roller Bearings	120	224	49	–	306092	269361	5696	7303	4528	876360	P6	C3 / C4	Machined brass	Bearing steel rollers	High carbon chromium bearing steel	Oil / Oil mist	8.863
61800	High Speed Deep Groove Ball Bearings	10	16	6	–	2320	1670	58500	75000	46500	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.004
61801	High Speed Deep Groove Ball Bearings	12	19	6	–	2761	1988	48750	62500	38750	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.006
61802	High Speed Deep Groove Ball Bearings	15	22	6	–	3227	2324	39000	50000	31000	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.007
61803	High Speed Deep Groove Ball Bearings	17	25	7	–	3961	2852	34412	44118	27353	750006	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.01
61804	High Speed Deep Groove Ball Bearings	20	29	7	–	4597	3310	29250	37500	23250	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.014
61805	High Speed Deep Groove Ball Bearings	25	36	8	–	6102	4394	23400	30000	18600	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.024
61806	High Speed Deep Groove Ball Bearings	30	42	9	–	7548	5435	19500	25000	15500	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.035
61807	High Speed Deep Groove Ball Bearings	35	48	10	–	9078	6536	16715	21429	13286	750015	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.048
61808	High Speed Deep Groove Ball Bearings	40	55	10	–	10405	7492	14625	18750	11625	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.063
61809	High Speed Deep Groove Ball Bearings	45	62	11	–	12304	8859	13000	16667	10334	750015	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.089
61810	High Speed Deep Groove Ball Bearings	50	68	12	–	14074	10133	11700	15000	9300	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.113
61811	High Speed Deep Groove Ball Bearings	55	74	13	–	15916	11459	10636	13636	8454	749980	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.141
61812	High Speed Deep Groove Ball Bearings	60	81	14	–	18089	13024	9750	12500	7750	750000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.184
61813	High Speed Deep Groove Ball Bearings	65	88	14	–	19660	14155	9191	11783	7305	765895	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.219
61814	High Speed Deep Groove Ball Bearings	70	94	15	–	21709	15631	8857	11355	7040	794850	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.262
61815	High Speed Deep Groove Ball Bearings	75	100	16	–	23821	17151	8557	10970	6801	822750	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.311
61816	High Speed Deep Groove Ball Bearings	80	107	17	–	26288	18928	8284	10621	6585	849680	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.381
61817	High Speed Deep Groove Ball Bearings	85	114	18	–	28835	20761	8037	10304	6388	875840	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.461
61818	High Speed Deep Groove Ball Bearings	90	120	18	–	30319	21830	7811	10014	6209	901260	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.503
61819	High Speed Deep Groove Ball Bearings	95	126	19	–	32671	23523	7603	9747	6043	925965	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.578
61820	High Speed Deep Groove Ball Bearings	100	133	20	–	35403	25490	7410	9500	5890	950000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.683
61821	High Speed Deep Groove Ball Bearings	105	140	21	–	38206	27508	7231	9271	5748	973455	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.799
61822	High Speed Deep Groove Ball Bearings	110	146	22	–	40742	29334	7065	9058	5616	996380	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.9
61823	High Speed Deep Groove Ball Bearings	115	152	22	–	42377	30511	6910	8859	5493	1018785	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.965
61824	High Speed Deep Groove Ball Bearings	120	159	23	–	45350	32652	6764	8672	5377	1040640	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.111
61900	High Speed Deep Groove Ball Bearings	10	18	6	–	2639	1900	54600	70000	43400	700000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.006
61901	High Speed Deep Groove Ball Bearings	12	21	6	–	3106	2236	45500	58333	36166	699996	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.008
61902	High Speed Deep Groove Ball Bearings	15	25	7	–	4048	2915	36400	46667	28934	700005	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.012
61903	High Speed Deep Groove Ball Bearings	17	28	7	–	4547	3274	32117	41176	25529	699992	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.015
61904	High Speed Deep Groove Ball Bearings	20	32	8	–	5591	4025	27300	35000	21700	700000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.022
61905	High Speed Deep Groove Ball Bearings	25	40	8	–	6988	5032	21840	28000	17360	700000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.035
61906	High Speed Deep Groove Ball Bearings	30	47	9	–	8744	6295	18200	23333	14466	699990	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.052
61907	High Speed Deep Groove Ball Bearings	35	54	10	–	10615	7643	15600	20000	12400	700000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.075
61908	High Speed Deep Groove Ball Bearings	40	61	11	–	12597	9070	13650	17500	10850	700000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.104
61909	High Speed Deep Groove Ball Bearings	45	68	12	–	14683	10572	12134	15556	9645	700020	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.138
61910	High Speed Deep Groove Ball Bearings	50	75	13	–	16869	12146	10920	14000	8680	700000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.18
61911	High Speed Deep Groove Ball Bearings	55	82	14	–	19150	13788	9927	12727	7891	699985	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.23
61912	High Speed Deep Groove Ball Bearings	60	89	15	–	21524	15497	9100	11667	7234	700020	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.288
61913	High Speed Deep Groove Ball Bearings	65	96	16	–	23986	17270	8707	11163	6921	725595	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.354
61914	High Speed Deep Groove Ball Bearings	70	103	17	–	26534	19104	8390	10757	6669	752990	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.431
61915	High Speed Deep Groove Ball Bearings	75	110	18	–	29164	20998	8106	10392	6443	779400	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.517
61916	High Speed Deep Groove Ball Bearings	80	118	18	–	31274	22517	7848	10062	6238	804960	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.601
61917	High Speed Deep Groove Ball Bearings	85	125	19	–	34044	24512	7614	9762	6052	829770	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.708
61918	High Speed Deep Groove Ball Bearings	90	132	20	–	36890	26561	7400	9487	5882	853830	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.828
61919	High Speed Deep Groove Ball Bearings	95	139	21	–	39811	28664	7203	9234	5725	877230	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.96
61920	High Speed Deep Groove Ball Bearings	100	146	22	–	42805	30819	7020	9000	5580	900000	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.105
61921	High Speed Deep Groove Ball Bearings	105	153	23	–	45869	33026	6851	8783	5445	922215	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.264
61922	High Speed Deep Groove Ball Bearings	110	160	24	–	49003	35282	6693	8581	5320	943910	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.438
61923	High Speed Deep Groove Ball Bearings	115	167	25	–	52205	37588	6547	8393	5204	965195	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.627
61924	High Speed Deep Groove Ball Bearings	120	174	26	–	55473	39941	6408	8216	5094	985920	P5	C3	Pressed steel	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.832
6000	High Speed Deep Groove Ball Bearings	10	21	8	–	3493	2515	42900	55000	34100	550000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.012
6001	High Speed Deep Groove Ball Bearings	12	24	9	–	4320	3110	35750	45833	28416	549996	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.017
6002	High Speed Deep Groove Ball Bearings	15	29	9	–	5289	3808	28600	36667	22734	550005	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.025
6003	High Speed Deep Groove Ball Bearings	17	33	10	–	6335	4561	25235	32353	20059	550001	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.036
6004	High Speed Deep Groove Ball Bearings	20	37	10	–	7228	5204	21450	27500	17050	550000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.043
6005	High Speed Deep Groove Ball Bearings	25	46	12	–	9863	7101	17160	22000	13640	550000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.079
6006	High Speed Deep Groove Ball Bearings	30	54	13	–	12140	8740	14300	18333	11366	549990	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.116
6007	High Speed Deep Groove Ball Bearings	35	62	14	–	14538	10467	12257	15714	9743	549990	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.163
6008	High Speed Deep Groove Ball Bearings	40	70	15	–	17053	12278	10725	13750	8525	550000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.22
6009	High Speed Deep Groove Ball Bearings	45	78	16	–	19681	14170	9533	12222	7578	549990	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.288
6010	High Speed Deep Groove Ball Bearings	50	86	17	–	22417	16140	8825	11314	7015	565700	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.369
6011	High Speed Deep Groove Ball Bearings	55	94	18	–	25258	18185	8414	10787	6688	593285	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.464
6012	High Speed Deep Groove Ball Bearings	60	102	19	–	28199	20304	8056	10328	6403	619680	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.574
6013	High Speed Deep Groove Ball Bearings	65	110	20	–	31239	22492	7740	9923	6152	644995	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.699
6014	High Speed Deep Groove Ball Bearings	70	118	21	–	34374	24749	7458	9562	5928	669340	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.841
6015	High Speed Deep Groove Ball Bearings	75	127	22	–	37821	27231	7206	9238	5728	692850	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.026
6016	High Speed Deep Groove Ball Bearings	80	135	24	–	42030	30262	6976	8944	5545	715520	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.26
6017	High Speed Deep Groove Ball Bearings	85	143	25	–	45475	32742	6768	8677	5380	737545	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.468
6018	High Speed Deep Groove Ball Bearings	90	151	26	–	49005	35283	6578	8433	5228	758970	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.697
6019	High Speed Deep Groove Ball Bearings	95	159	27	–	52617	37884	6402	8208	5089	779760	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.948
6020	High Speed Deep Groove Ball Bearings	100	167	28	–	56310	40543	6240	8000	4960	800000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.223
6021	High Speed Deep Groove Ball Bearings	105	175	29	–	60082	43259	6089	7807	4840	819735	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.523
6022	High Speed Deep Groove Ball Bearings	110	183	30	–	63931	46031	5950	7628	4729	839080	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.848
6023	High Speed Deep Groove Ball Bearings	115	191	31	–	67857	48857	5819	7460	4625	857900	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	3.2
6024	High Speed Deep Groove Ball Bearings	120	199	32	–	71857	51737	5696	7303	4528	876360	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	3.58
6200	High Speed Deep Groove Ball Bearings	10	24	10	–	4702	3385	35100	45000	27900	450000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.021
6201	High Speed Deep Groove Ball Bearings	12	28	10	–	5560	4003	29250	37500	23250	450000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.028
6202	High Speed Deep Groove Ball Bearings	15	33	11	–	7062	5085	23400	30000	18600	450000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.042
6203	High Speed Deep Groove Ball Bearings	17	37	11	–	7956	5729	20647	26471	16412	450007	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.053
6204	High Speed Deep Groove Ball Bearings	20	42	12	–	9582	6899	17550	22500	13950	450000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.073
6205	High Speed Deep Groove Ball Bearings	25	52	13	–	12398	8926	14040	18000	11160	450000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.12
6206	High Speed Deep Groove Ball Bearings	30	61	14	–	15235	10970	11700	15000	9300	450000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.175
6207	High Speed Deep Groove Ball Bearings	35	70	16	–	18816	13548	10028	12857	7971	449995	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.261
6208	High Speed Deep Groove Ball Bearings	40	79	17	–	21998	15839	9250	11859	7353	474360	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.35
6209	High Speed Deep Groove Ball Bearings	45	88	18	–	25312	18225	8720	11180	6932	503100	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.457
6210	High Speed Deep Groove Ball Bearings	50	97	20	–	29500	21240	8273	10607	6576	530350	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.613
6211	High Speed Deep Groove Ball Bearings	55	106	21	–	33116	23843	7888	10113	6270	556215	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.765
6212	High Speed Deep Groove Ball Bearings	60	115	22	–	36849	26531	7552	9682	6003	580920	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	0.94
6213	High Speed Deep Groove Ball Bearings	65	124	23	–	40697	29302	7256	9303	5768	604695	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.139
6214	High Speed Deep Groove Ball Bearings	70	133	24	–	44656	32152	6992	8964	5558	627480	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.363
6215	High Speed Deep Groove Ball Bearings	75	142	26	–	49688	35775	6755	8660	5369	649500	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	1.678
6216	High Speed Deep Groove Ball Bearings	80	152	27	–	54131	38974	6540	8385	5199	670800	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.002
6217	High Speed Deep Groove Ball Bearings	85	161	28	–	58454	42087	6345	8135	5044	691475	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.324
6218	High Speed Deep Groove Ball Bearings	90	170	30	–	63952	46046	6167	7906	4902	711540	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	2.77
6219	High Speed Deep Groove Ball Bearings	95	179	31	–	68513	49329	6002	7695	4771	731025	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	3.167
6220	High Speed Deep Groove Ball Bearings	100	188	32	–	73168	52681	5850	7500	4650	750000	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	3.6
6221	High Speed Deep Groove Ball Bearings	105	197	33	–	77916	56099	5709	7319	4538	768495	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	4.07
6222	High Speed Deep Groove Ball Bearings	110	206	34	–	82755	59584	5578	7151	4434	786610	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	4.579
6223	High Speed Deep Groove Ball Bearings	115	215	36	–	88928	64028	5455	6994	4336	804310	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	5.274
6224	High Speed Deep Groove Ball Bearings	120	224	37	–	93980	67666	5341	6847	4245	821640	P6	C3 / C4	Pressed steel / Polyamide	Bearing steel balls	High carbon chromium bearing steel	Grease / Oil	5.876

High Speed Bearing Applications

Designed with specialized rolling elements, optimized structures, and advanced materials, high speed bearings are widely used across many industries and high-speed equipment.

Machine Tools

Main spindles
Grinding spindles
Milling heads
Tool changers
Ball screw supports
High-speed drilling units

Automotive

Turbochargers
Electric drive motors
Transmission shafts
Fuel pumps
Air conditioning compressors
Starter generators

Aerospace

Aircraft engines
Auxiliary power units
Gyroscope systems
Fuel pumps
Actuator systems
Air cycle machines

Energy

Gas turbines
Steam turbines
Compressors
High-speed generators
Vacuum pumps
Wind turbine auxiliary drives

Medical Equipment

Dental handpieces
Surgical drills
CT scanner rotors
MRI cooling pumps
Laboratory centrifuges
Blood analyzers

Robotics & Automation

Servo motors
Robotic arm joints
Gear reducers
End effectors
Linear actuators
Pick-and-place heads

Semiconductor & Electronics

PCB drilling spindles
Wafer handling systems
Inspection equipment
Vacuum pumps
High-speed motors
Precision positioning units

Food & Packaging Industry

Filling machines
Labeling machines
Cutting units
Sealing rollers
Conveyor drive motors
Packaging spindles

Railway & Transportation

Traction motors
Cooling fans
Air compressors
Gearbox shafts
Brake system motors
Auxiliary generators

FAQs About High Speed Bearings

Q1. Are All High-speed Bearings Spindle Bearings, or Are All Spindle Bearings High-speed Bearings?

No. Although spindle bearings and high-speed bearings overlap in some applications, they are not the same concept.
Spindle bearings are a specific category of bearings designed for machine tool spindles and other precision spindle systems. Their main purpose is to provide high rotational accuracy, rigidity, and low vibration, while also supporting high-speed operation. Common spindle bearing types include super-precision angular contact ball bearings and super-precision cylindrical roller bearings.
High-speed bearings are a broader category defined by operating speed rather than application. Some spindle bearings belong to this category, together with many other bearing types used in high-speed equipment such as electric motors, compressors, turbochargers, dental handpieces, and robotics.
In short, some spindle bearings are high-speed bearings, but not all high-speed bearings are spindle bearings. In addition, some spindle bearings are selected mainly for precision, stiffness, or load capacity rather than maximum speed.

Q2. Why Do High Speed Bearing Designers Care So Much About Rolling Element Mass?

Because rolling element mass has a direct influence on bearing performance at high speed. As rotational speed increases, heavier balls or rollers generate larger centrifugal forces, which increase internal contact stress, friction, and heat generation.
By reducing rolling element mass, designers can lower speed-related loading and internal friction, allowing the bearing to operate more smoothly at higher speeds. Lighter rolling elements also help maintain more stable internal contact conditions as speed rises, improving efficiency and reducing energy loss during operation. This is why materials such as ceramic are often used in high speed bearings, as they are lighter than steel while offering excellent stiffness and wear resistance.

Q3. What is Ultra-high-Speed Bearing?

Ultra-high-speed bearings are specially designed to operate at speed levels beyond those of standard high-speed bearings while still maintaining low heat generation, high running accuracy, stable preload, and reliable lubrication. However, there is no single universal standard that clearly separates high-speed bearings from ultra-high-speed bearings across all manufacturers.

Q4. Are Magnetic bearings Considered high-speed Bearings?

Yes. Magnetic bearings are often considered a high-speed bearing solution because they are widely used in high-speed motors, compressors, turbines, and other high-speed rotating equipment. However, they are different from conventional high-speed rolling bearings because they support the shaft without physical contact by using magnetic force.

Q5. Are Air Bearings Considered High-speed Bearings?

Yes. Air bearings are often considered a high-speed bearing solution because they can support high-speed, low-friction, and high-precision motion. However, they are not rolling bearings. Instead of balls or rollers, they use an air film to create non-contact support, so they belong to a different bearing technology category.

Q6. Can a Bearing Unit or Pillow Block Be a High-speed Bearing?

No, not in most cases. Pillow block bearings and bearing units are usually designed for general industrial speeds, while true high-speed bearings are designed for much higher speed, higher precision, and better vibration control. However, some mounted ball bearing units can still be used in relatively high-speed industrial applications.

Q7. What Is the First Thing to Know Before Selecting a High-speed Bearing?

The first thing to know is the actual speed condition, especially the DN or dmN value, rather than RPM alone. This helps determine whether the application truly requires a high-speed bearing and what bearing design, preload, and lubrication method may be suitable.

More FAQS >>

Get a Fast Quote for High Speed Bearings

Send us your application details, operating speed, load conditions, dimensions, or technical requirements, and our team will quickly provide suitable bearing solutions and a quotation.

Products

Industries

Resources

About Us

Contact Us

Hot-selling Bearings

Special Bearings

Application-based Bearings

Related Products

Industries

Resources

Hot-selling Bearings

Special Bearings

Application-based Bearings

Related Products

High Speed Bearings

Benefits and Advantages of BKZ Industry High Speed Bearings
