Split Bearings

Split bearings are designed with all major components split into halves, allowing them to be assembled around the shaft and fixed together with bolts to form a complete bearing unit. These bearings typically consist of a split inner ring, split outer ring, split cage with rolling elements, fastening rings or clamping rings, fixing bolts, seals, and a lubrication system. They are designed to be installed or removed without dismantling the shaft or surrounding equipment, helping reduce maintenance time, downtime, and installation difficulty.
As a split bearing manufacturer with many years of experience and ISO 9001 certification, BKZ Industry can offer different types of split bearings, including split pillow block bearings, split cylindrical roller bearings, split spherical roller bearings, split tapered roller bearings, split plain bearings, and split thin section bearings. These bearings are widely used in mining, cement, steel, marine, and other heavy-duty industries.

Get a Quote

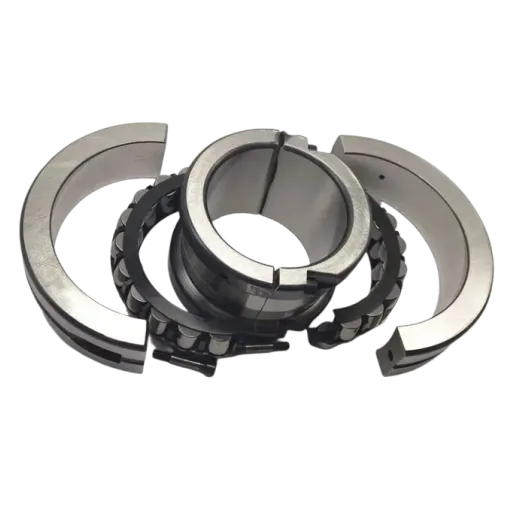

Split Bearings Are Designed With Special Features

Features and Benefits of Split Bearings

Split bearings are designed with special features such as split inner and outer rings, a split rolling element and cage assembly, a bolt fastening system, and a cartridge housing design.

Features of Split Bearings

Split Structure

Split bearings are designed with split bearing components, such as split inner ring, split outer ring, split cage with rolling elements, fastening or clamping rings, fixing bolts, seals, split housing or cartridge unit, and a lubrication system.

High Radial Load Capacity

Most split bearings use roller elements instead of balls, providing line contact that allows them to carry higher radial loads.

Available for Axial and Combined Loads

Some split bearings are designed with angular contact or tapered raceways, which allow them to support axial loads and combined radial and axial loads.

Self-aligning Housing Seat

With self-aligning housing seats, split bearings can accommodate shaft misalignment and minor installation errors.

Pre-set Clearance

Pre-set clearance in split bearings is achieved through precision machining, matched bearing halves, and controlled bolt tightening, so the correct internal clearance can be obtained during installation.

Benefits of Split Bearings

Reduced Downtime

Their split design allows easier installation, faster replacement, and simplified maintenance, which helps reduce equipment downtime.

Easy installation and Replacement

The split structure, modular components, and clamp assembly design allow installation and replacement without removing the shaft.

Lower Maintenance Cost

Split bearings can be installed and removed without dismantling the shaft or surrounding equipment, significantly reducing downtime, labor cost, and maintenance time.

Improved Safety

Split bearings improve maintenance safety by reducing heavy disassembly work, lifting operations, and other potentially hazardous maintenance procedures.

Ideal for Long Shafts, Trapped Positions, Heavy Industries

Split bearings are ideal for long shafts and trapped positions because they can be installed and removed without dismantling adjacent components. They are widely used in heavy industries such as mining, cement, steel, marine, power plants, pulp and paper, and bulk material handling.

Get a Quote

Split Bearing Types

Split bearings are classified into different types based on bearing design and load capacity, including cylindrical roller, spherical roller, tapered roller, pillow block units, plain bearings, and thin section bearings. Each type is designed for specific load conditions, shaft sizes, and industrial applications.

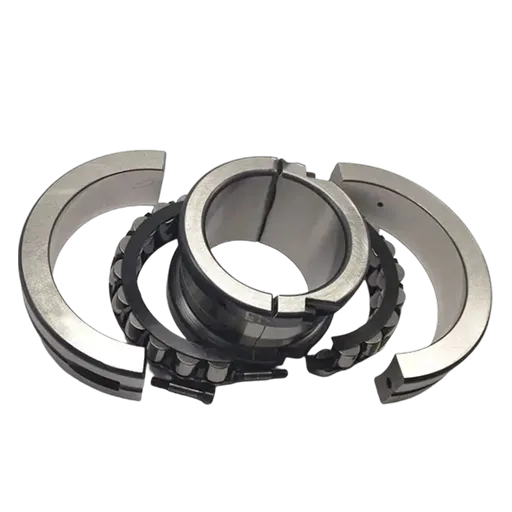

Split Cylindrical Roller Bearings

Split Cylindrical Roller Bearings

Split cylindrical roller bearings use split rings with cylindrical rollers and a split cage, providing line contact for very high radial load capacity and high rigidity. They are mainly designed for heavy radial loads rather than axial loads. These bearings are commonly used in conveyors, large fans, marine shafts, and heavy industrial machinery where high radial load capacity is required.

Get a Quote >>

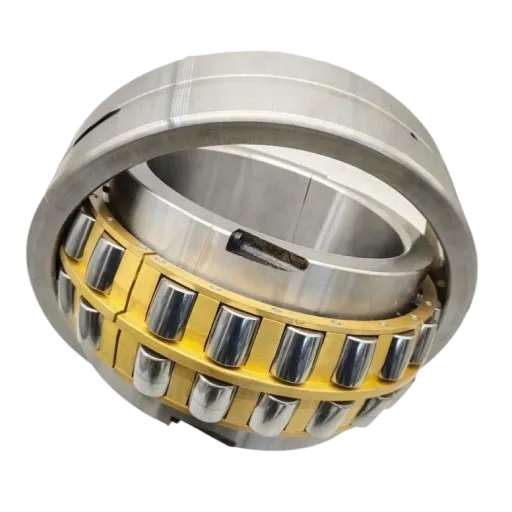

Split Spherical Roller Bearings 2

Split Spherical Roller Bearings

Split spherical roller bearings feature two rows of barrel rollers and a spherical outer raceway, allowing the bearing to accommodate shaft misalignment while carrying heavy radial and axial loads. They are especially suitable for applications with shaft deflection or alignment errors, such as mining equipment, crushers, vibrating screens, and cement machinery.

Get a Quote >>

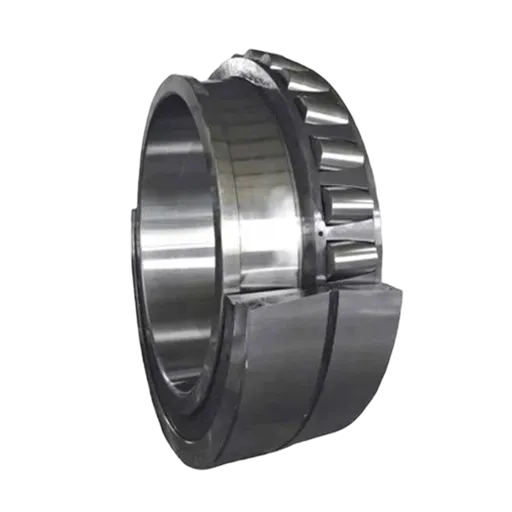

Split Tapered Roller Bearings 2

Split Tapered Roller Bearings

Split tapered roller bearings use tapered rollers and tapered raceways, allowing them to support combined radial and axial loads and provide accurate shaft positioning. They are typically used in gearboxes, steel mills, marine propulsion shafts, and heavy transmission equipment where both load capacity and shaft positioning are important.

Get a Quote >>

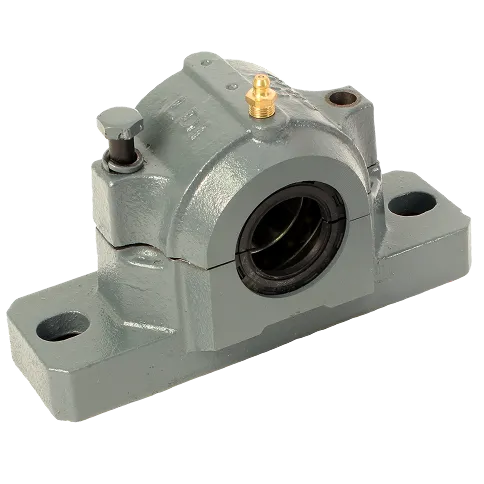

Split Pillow Block Bearings

Split Pillow Block Bearings

Split pillow block bearings consist of a split bearing mounted in a split housing unit, making installation and maintenance easier for large shafts. They are mainly used as mounted bearing units in conveyors, industrial fans, processing equipment, and bulk material handling systems.

Get a Quote >>

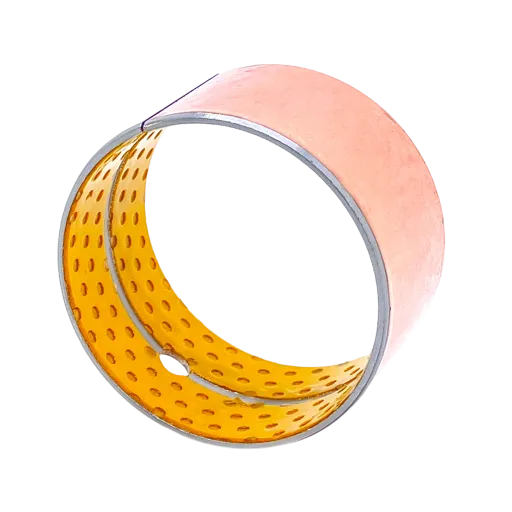

Split Plain Bearings

Split Plain Bearings (Split Bushings)

Split plain bearings are sliding bearings made of split bushings, suitable for very large shaft diameters, heavy loads, and low-speed applications. They are commonly used in turbines, generators, compressors, and marine equipment where rolling bearings may not be suitable.

Get a Quote >>

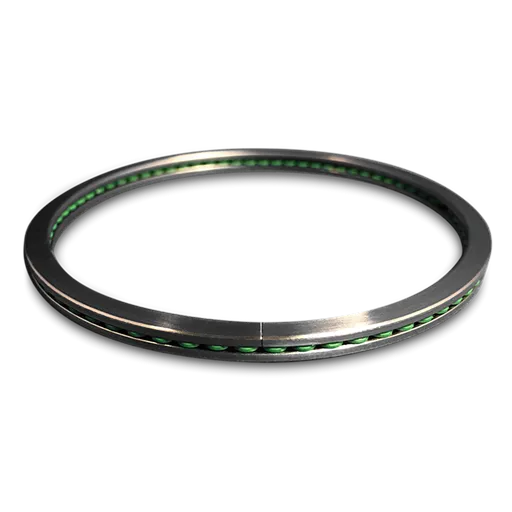

Split Thin Section Bearings

Split Thin Section Bearings

Split thin section bearings have a constant cross-section and very thin ring design, making them suitable for large diameter applications where space and weight are limited. They are commonly used in rotary tables, radar systems, aerospace equipment, and precision positioning machinery.

Get a Quote >>

*Other bearings are also available based on your application requirements. Contact us for more options.

Split Bearing Size Chart

Split bearings do not have a unified ISO dimension series like standard rolling bearings. Their dimensions are usually manufacturer-specific, but load ratings, tolerances, and fits often follow ISO standards. Therefore, here we list some split bearing sizes that we have supplied for other customers. For your requirements, please contact us directly with your bearing requirements.

Get a Quote
Bearing No Shaft Diameter (mm) Outside Diameter (mm) Width (mm) Dynamic Load Rating C (kN) Static Load Rating C0 (kN) Weight (kg)
BKZ-SB-40 40 88 24 72 96 3.2
BKZ-SB-45 45 99 27 81 108 3.6
BKZ-SB-50 50 110 30 90 120 4
BKZ-SB-55 55 121 33 99 132 4.4
BKZ-SB-60 60 132 36 108 144 4.8
BKZ-SB-65 65 143 39 117 156 5.2
BKZ-SB-70 70 154 42 126 168 5.6
BKZ-SB-75 75 165 45 135 180 6
BKZ-SB-80 80 176 48 144 192 6.4
BKZ-SB-85 85 187 51 153 204 6.8
BKZ-SB-90 90 198 54 162 216 7.2
BKZ-SB-95 95 209 57 171 228 7.6
BKZ-SB-100 100 220 60 180 240 8
BKZ-SB-105 105 231 63 189 252 8.4
BKZ-SB-110 110 242 66 198 264 8.8
BKZ-SB-115 115 253 69 207 276 9.2
BKZ-SB-120 120 264 72 216 288 9.6
BKZ-SB-125 125 275 75 225 300 10
BKZ-SB-130 130 286 78 234 312 10.4
BKZ-SB-135 135 297 81 243 324 10.8
BKZ-SB-140 140 308 84 252 336 11.2
BKZ-SB-145 145 319 87 261 348 11.6
BKZ-SB-150 150 330 90 270 360 12
BKZ-SB-155 155 341 93 279 372 12.4
BKZ-SB-160 160 352 96 288 384 12.8
BKZ-SB-165 165 363 99 297 396 13.2
BKZ-SB-170 170 374 102 306 408 13.6
BKZ-SB-175 175 385 105 315 420 14
BKZ-SB-180 180 396 108 324 432 14.4
BKZ-SB-185 185 407 111 333 444 14.8
BKZ-SB-190 190 418 114 342 456 15.2
BKZ-SB-195 195 429 117 351 468 15.6
BKZ-SB-200 200 440 120 360 480 16
BKZ-SB-205 205 451 123 369 492 16.4
BKZ-SB-210 210 462 126 378 504 16.8
BKZ-SB-215 215 473 129 387 516 17.2
BKZ-SB-220 220 484 132 396 528 17.6
BKZ-SB-225 225 495 135 405 540 18
BKZ-SB-230 230 506 138 414 552 18.4
BKZ-SB-235 235 517 141 423 564 18.8
BKZ-SB-240 240 528 144 432 576 19.2
BKZ-SB-245 245 539 147 441 588 19.6
BKZ-SB-250 250 550 150 450 600 20
BKZ-SB-255 255 561 153 459 612 20.4
BKZ-SB-260 260 572 156 468 624 20.8
BKZ-SB-265 265 583 159 477 636 21.2
BKZ-SB-270 270 594 162 486 648 21.6
BKZ-SB-275 275 605 165 495 660 22
BKZ-SB-280 280 616 168 504 672 22.4
BKZ-SB-285 285 627 171 513 684 22.8
BKZ-SB-290 290 638 174 522 696 23.2
BKZ-SB-295 295 649 177 531 708 23.6
BKZ-SB-300 300 660 180 540 720 24
BKZ-SB-305 305 671 183 549 732 24.4
BKZ-SB-310 310 682 186 558 744 24.8
BKZ-SB-315 315 693 189 567 756 25.2
BKZ-SB-320 320 704 192 576 768 25.6
BKZ-SB-325 325 715 195 585 780 26
BKZ-SB-330 330 726 198 594 792 26.4
BKZ-SB-335 335 737 201 603 804 26.8

Split Bearing Applications

Split bearings are widely used in heavy industrial equipment because they allow easy installation and removal without disassembling the shaft or surrounding components.

FAQs About Thin Section Bearings

Q1. What is a Cooper split bearing?

A Cooper split bearing is is a type of split roller bearing designed by SKF with split inner ring, outer ring, cage, and housing, allowing installation around the shaft without removing surrounding equipment. It is mainly used in heavy industrial machinery such as conveyors, marine shafts, fans, and mining equipment where maintenance access is limited.

Split bearings are mainly used in large industrial equipment where shafts are difficult to remove or equipment downtime must be minimized. Typical applications include conveyors, crushers, large fans, marine propulsion shafts, steel mills, power plants, and bulk material handling equipment.

A split bearing looks like a standard bearing that has been divided into two halves. The inner ring, outer ring, cage, and housing are split and assembled around the shaft, then fixed together with bolts to form a complete bearing unit.

The main difference is installation. Solid bearings must be installed from the shaft end, while split bearings can be assembled directly around the shaft. Split bearings reduce maintenance time and downtime, while solid bearings are usually smaller, cheaper, and used in standard applications.

A split bearing is usually supported by a split housing or pillow block housing. The housing supports the outer ring and carries the load, while the shaft supports the inner ring. The housing also helps maintain alignment and lubrication.

More FAQS >>

Our Bearing Product Range

In addition to split bearings, we supply a wide range of other bearings including solide lubricant bearings, thin section bearings, ceramic bearings, etc.

get a quote from bkz industry bearing experts

Get a Fast Quote for Split Bearings

Please send us your bearing dimensions, drawings, or application details for split bearing requirements. Our engineering team will assist with bearing selection, technical support, and solution recommendations based on shaft size, load conditions, operating speed, alignment, and working environment.
