Wind Energy Bearings

Combined Load Capacity and Extended Service Life

Wind energy bearings are designed for critical positions in wind turbines, including the main shaft, pitch system, yaw system, gearbox, and generator. They support rotor loads, enable blade angle adjustment, and allow precise nacelle rotation to face the wind, while ensuring stable operation of high-speed and auxiliary systems such as cooling fans, pumps, and braking units.
These bearings are engineered to withstand combined radial, axial, and moment loads under fluctuating conditions. Optimized internal geometry and surface treatments help reduce friction, wear, and energy loss, ensuring long service life and compatibility with condition monitoring and predictive maintenance systems.
BKZ Industry provides a full range of wind turbine bearing solutions, including spherical roller bearings, tapered roller bearings, cylindrical roller bearings, deep groove ball bearings, four-point contact ball bearings, etc. With ISO 9001 certification and over 15 years of manufacturing and export experience, we support global customers with reliable and customized bearing solutions for wind energy applications.

Bearing Challenges in Wind Energy Industry

Wind turbine bearings operate in harsh and constantly changing environments, where factors such as fluctuating loads, contamination, corrosion, and difficult maintenance create significant challenges that impact performance, reliability, and long-term service life.

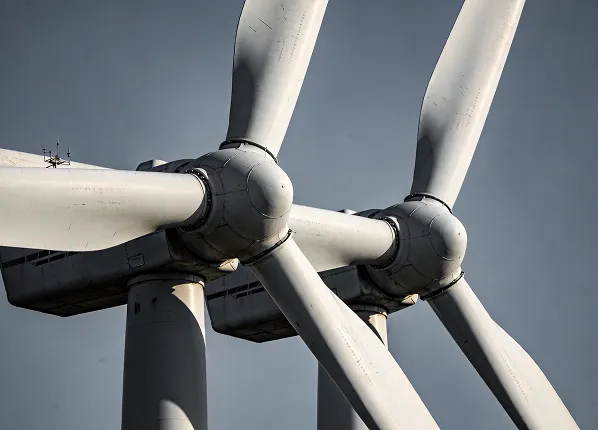

Misalignment and shaft deflection due to structural deformation, installation tolerances, and variable operating loads

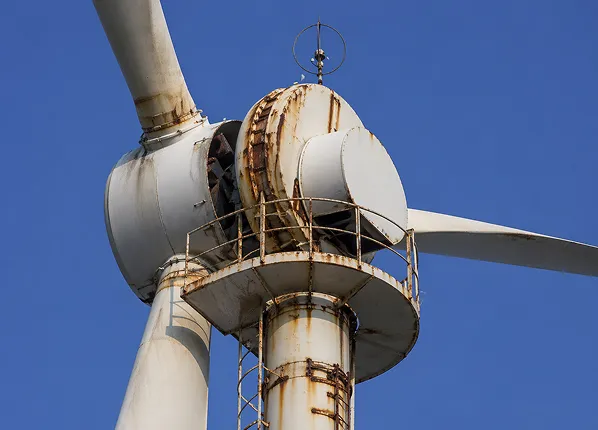

Corrosion risks due to humidity, salt spray, and aggressive offshore environmental conditions

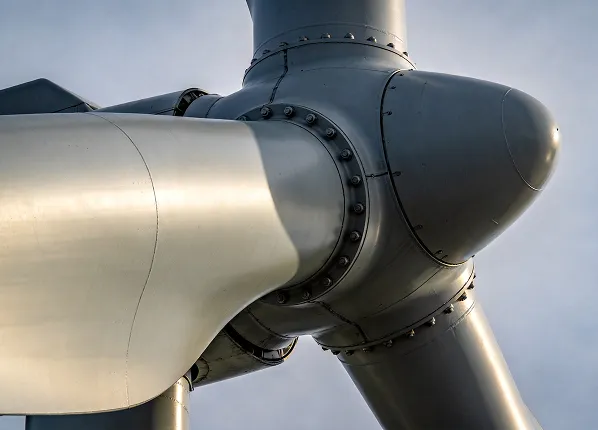

High loads from wind forces and rotor mass due to large blade size and fluctuating wind conditions

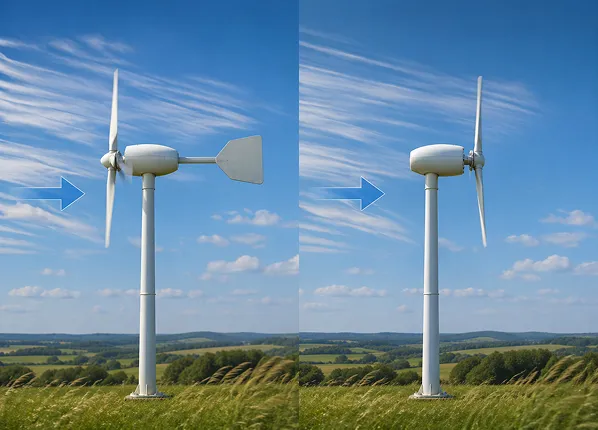

Combined radial, axial, and moment loads due to changing wind directions and uneven aerodynamic forces

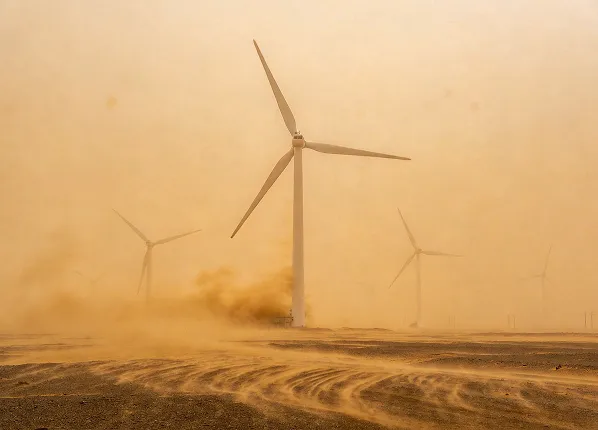

Contamination from moisture, debris, and wear particles due to inadequate sealing and harsh operating environments

Electrical erosion and current-induced damage due to stray currents passing through generator bearings

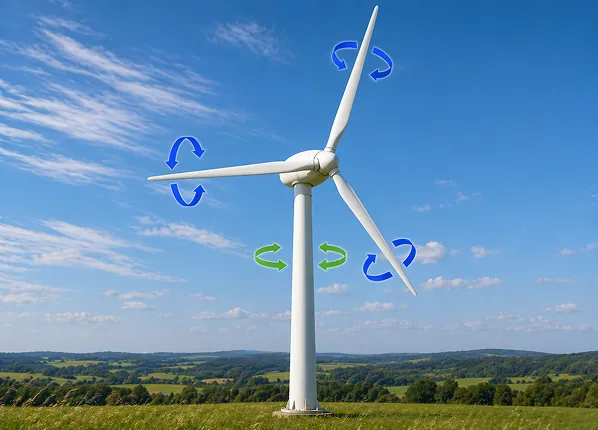

Low-speed oscillating or partial-rotation motion due to frequent pitch and yaw adjustments under varying wind conditions

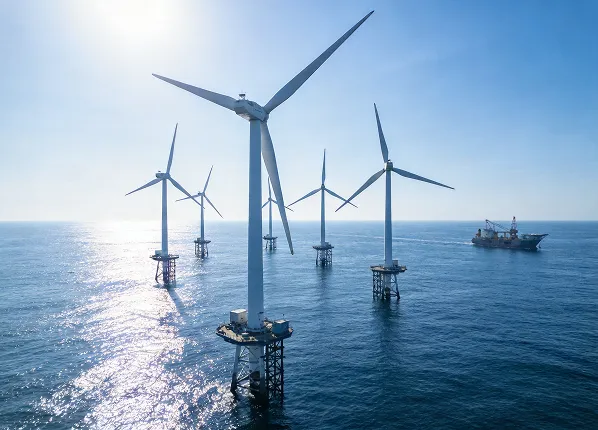

Lubrication challenges and high maintenance costs due to difficult access and large component sizes in offshore wind turbines

How Does BKZ Industry Solve Wind Turbine Bearing Challenges?

Wind turbine bearings manufactured by BKZ Industry incorporate advanced technologies to address these challenges, ensuring stable operation, high reliability, and extended service life.

Corrosion Resistance Technology

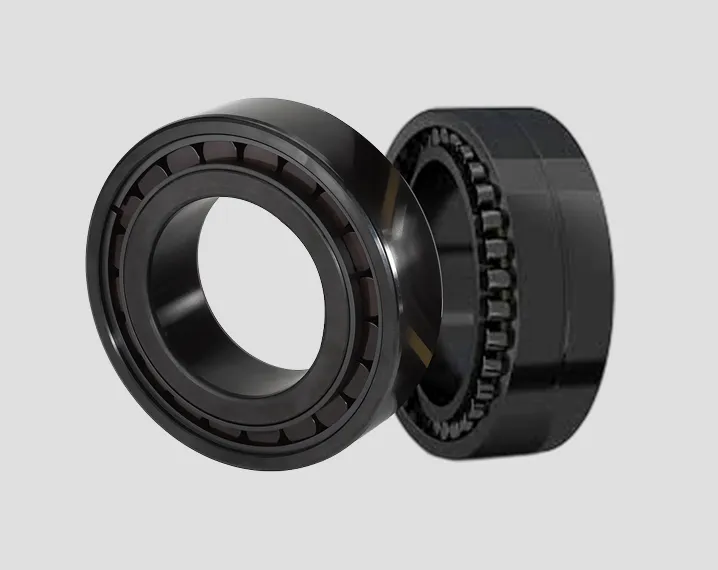

Black oxide (magnetite) coatings, phosphate coatings (manganese/zinc), and zinc-based coatings (galvanizing, Zn-Al) are applied to improve corrosion resistance. In addition, high-cleanliness bearing steels and stainless steels (e.g., martensitic or duplex types) are used to enhance wear resistance, fatigue performance, and durability in harsh environments.

Electrically Insulated Bearings

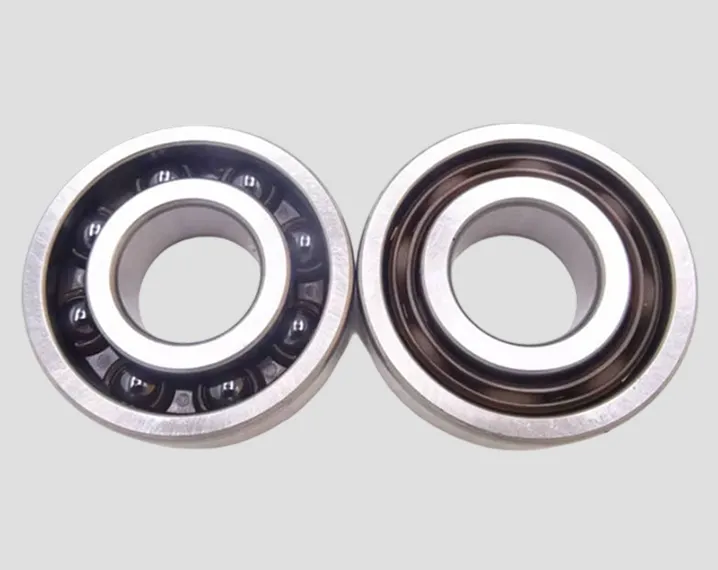

Ceramic-coated rings (e.g., INSOCOAT type), hybrid bearings with ceramic rolling elements, and polymer or composite insulating layers are used to prevent current passage through bearings. Shaft grounding and current bypass systems further reduce electrical erosion, improving generator reliability and bearing life.

Advanced Lubrication and Sealing Technology

High-performance lubricants with anti-wear (AW), extreme-pressure (EP), and anti-corrosion additives are used to reduce friction and wear. Optimized lubrication systems for low-speed and oscillating motion, along with centralized or automatic lubrication, improve reliability. Multi-lip seals, non-contact seals, and integrated sealing units prevent contamination and extend service life under harsh conditions.

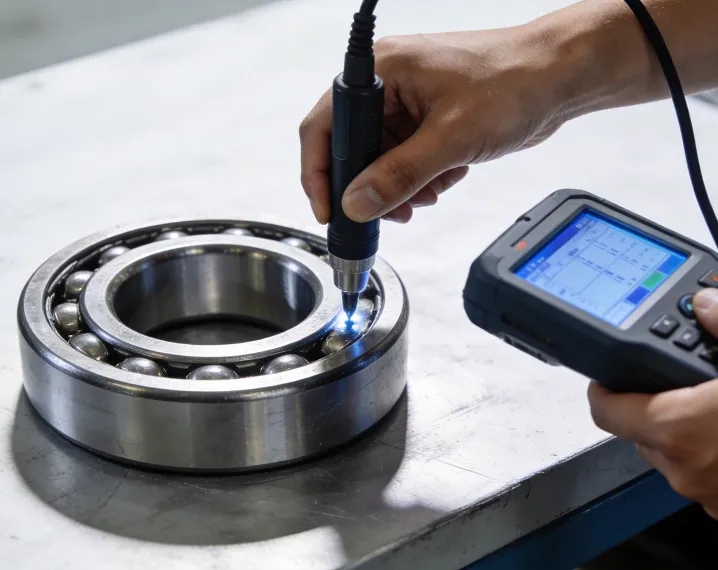

Condition Monitoring and Smart Sensing

Vibration, temperature, load, lubrication condition, and electrical current monitoring systems—often integrated with SCADA—are used to detect early faults. Smart sensors and IoT-based systems enable predictive maintenance, reducing downtime and improving reliability under variable operating conditions.

High-Performance Bearing Materials

High-cleanliness bearing steels, case-hardened and through-hardened alloy steels, corrosion-resistant steels, ceramic materials (hybrid bearings), and advanced coatings are used to improve fatigue life, wear resistance, and corrosion resistance. These materials help reduce premature failures such as white etching cracks (WEC).

Advanced Bearing Design

Split, modular, or disassemblable bearing designs allow easier installation and replacement, especially in nacelle maintenance. Multi-row and heavy-duty load-sharing designs improve load distribution and reliability. Self-aligning or misalignment-tolerant geometries compensate for shaft deflection and mounting errors. Optimized preload and internal geometry enhance load distribution and reduce stress concentrations.

Where Bearings Are Used in Wind Turbines?

Wind turbine bearings are installed in key positions such as the main shaft, gearbox, generator, pitch, and yaw systems to support heavy loads, enable precise motion, and ensure stable operation under harsh and variable conditions.

Main Shaft (Rotor Support)

Gearbox

Generator

Pitch System (Blade Adjustment)

Yaw System (Nacelle Rotation)

Auxiliary Systems

*Our bearing solutions can be customized for various wind turbine applications beyond those listed above. Contact BKZ Industry for technical support, fast quotations, and tailored solutions.

What Bearings Are Used in Wind Turbines?

Different wind turbine applications require specific bearing types. BKZ Industry selects suitable bearing solutions based on load conditions, speed, alignment requirements, motion characteristics, and operating environments.

Spherical Roller Bearings

Featuring two rows of barrel-shaped rollers and a spherical outer raceway, these bearings accommodate misalignment and shaft deflection. In wind turbines, they handle heavy and fluctuating loads at the main shaft, ensuring stable operation and extended service life under variable wind conditions.

Learn More >>

Tapered Roller Bearings

Designed with tapered rollers and raceways for line contact, these bearings support combined radial and axial loads. They are widely used in main shafts and gearboxes, providing high load capacity, stiffness, and precise load transmission in demanding wind turbine applications.

Learn More >>

Cylindrical Roller Bearings

With cylindrical rollers offering line contact, these bearings provide high radial load capacity and low friction. In wind turbine gearboxes, especially in high-speed stages, they improve efficiency, reduce heat generation, and ensure reliable performance under continuous operation.

Learn More >>

Deep Groove Ball Bearings

Featuring deep raceway grooves and point contact design, these bearings are suitable for high-speed operation with low noise. Commonly used in generators and auxiliary systems, they provide smooth rotation, reliability, and long service life under stable load conditions.

Learn More >>

Four-Point Contact Ball Bearings

A single-row design with four-point contact enables these bearings to support axial loads in both directions while saving space. They are ideal for pitch and yaw systems, where compact structure and the ability to handle overturning moments are critical.

Learn More >>

Angular Contact Ball Bearings

Designed with a contact angle to support combined loads, these bearings perform well in high-speed and precision applications. In wind turbine generators and auxiliary drives, they ensure accurate rotation, reduced friction, and improved operational reliability.

Learn More >>

Toroidal Roller Bearings

Featuring a unique roller profile that allows axial displacement, these bearings accommodate thermal expansion and shaft misalignment. In wind turbine gearboxes, they reduce internal stress and improve load distribution, enhancing reliability under variable operating conditions.

Learn More >>

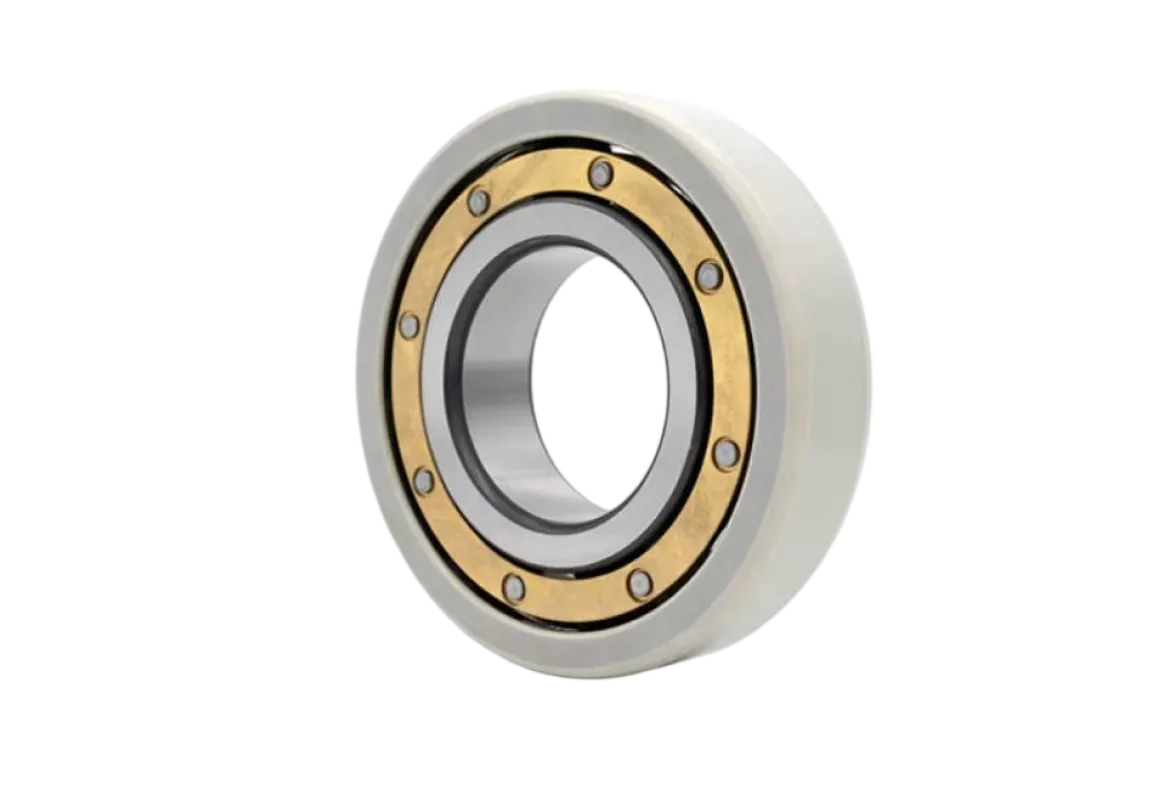

Electrically Insulated Bearings

These bearings incorporate insulating coatings or ceramic rolling elements to prevent current flow. Used mainly in generators, they protect against electrical erosion and fluting damage, significantly improving bearing life and reducing maintenance requirements.

Learn More >>

Plain / Sliding Thrust Pad Bearings

Designed with segmented pads to support axial loads, these bearings provide stable thrust support and good damping characteristics. In wind energy systems, they are mainly found in some large generator or special drivetrain arrangements, where reliable axial load control and smooth operation are required.

Learn More >>

Proven Bearing Solutions for Wind Energy and Demanding Industries

BKZ Industry leverages its experience in wind energy and other demanding industries to deliver reliable bearing solutions under heavy loads, harsh environments, and complex operating conditions.

Agriculture

Railways

Metals

Construction

Aerospace

Automative

Marine

Food and Beverage

Machine Tools

Cement

Get a Fast Quote for Wind Turbine Bearing Solutions

Share your application requirements or bearing numbers, and our engineering and sales teams will deliver optimized bearing solutions and fast quotations based on your load conditions, speed, alignment, and operating environment.
