Thrust Roller Bearings

Thrust roller bearings consist of a shaft washer, a housing washer, rollers, and a cage. They are designed primarily to support axial loads and are not suitable for radial loads. Their design helps reduce friction between rotating components, maintain accurate axial positioning of the shaft, and ensure smooth rotation under heavy axial loads, thereby improving machine stability and reliability while extending equipment service life.
As a thrust roller bearing manufacturer and factory, BKZ Industry offers various types, including cylindrical, needle, tapered, and spherical thrust roller bearings. Compared with rolling elements in thrust ball bearings, thrust roller bearings generally provide higher axial load capacity. They are widely used in gearboxes, rolling mills, crane hooks, and machine tools. With 15 years of experience and ISO 9001:2015 certification, BKZ Industry provides high-quality bearing solutions.

Benefits & Advantages of BKZ Industry Thrust Roller Bearings

Thrust roller bearings are designed to support high axial loads while requiring limited installation space. They provide high rigidity, stable operation, and good resistance to shock loads, making them suitable for heavy-duty and demanding applications. With ISO 9001 quality management and 15 years of bearing manufacturing experience, BKZ Industry can supply thrust roller bearings that meet various application requirements.

Benefits of Thrust Roller Bearings

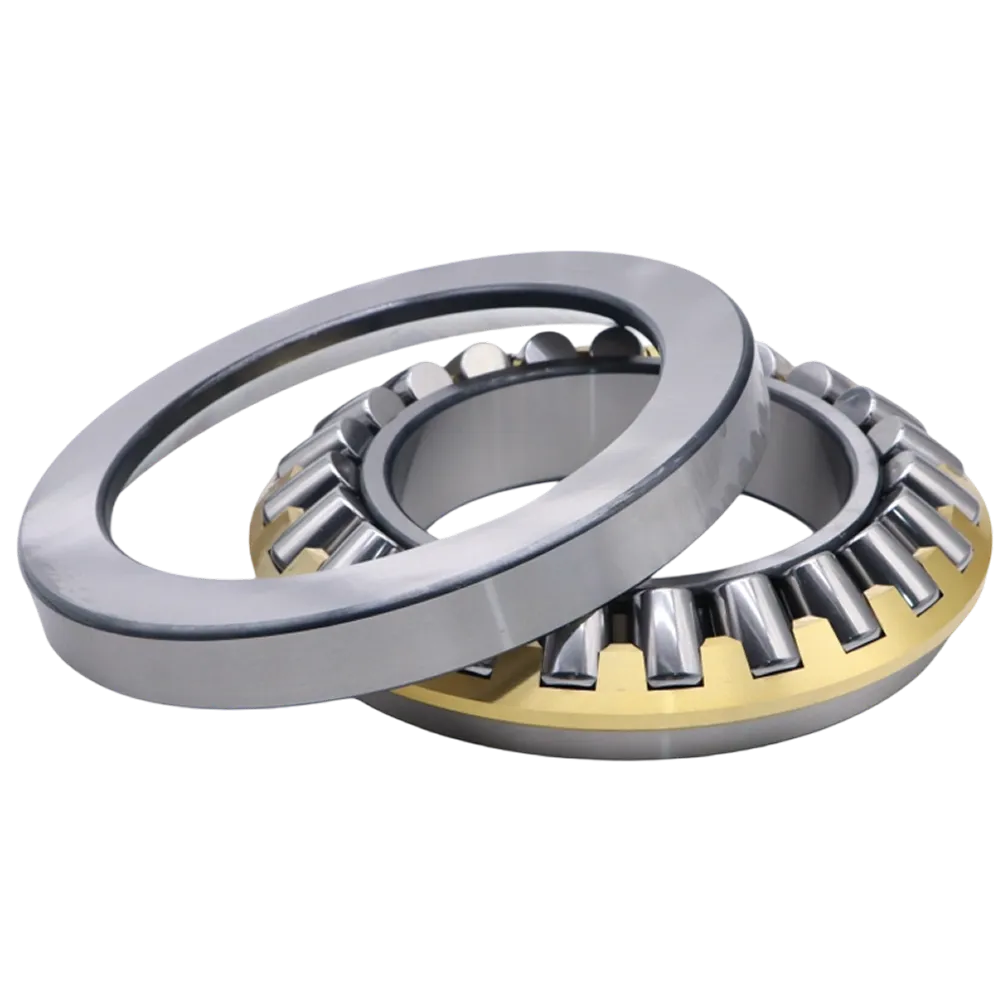

Higher Load Capacity

Compared with thrust ball bearings, thrust roller bearings offer higher load capacity because cylindrical rollers, needle rollers, tapered rollers, and spherical rollers have line contact with the raceways instead of point contact, resulting in higher load carrying capacity.

Limited Installation Space

The internal structure is optimized in the axial direction rather than the radial direction, so the bearing height is relatively small compared with bearings designed to carry combined loads. The small radial cross-section makes them suitable for applications with limited installation space.

High Rigidity and Stability

Thrust roller bearings use larger rolling elements and a contact angle close to 90°, which provides high axial rigidity, stable operation, and accurate axial positioning of the shaft.

Better Shock Resistance

Line contact between rollers and raceways, combined with larger rolling elements and a strong internal structure, provides good resistance to shock loads and vibration.

Easy Installation

Thrust roller bearings usually have separable components such as the shaft washer, housing washer, and roller and cage assembly. They do not require radial clearance adjustment and use flat washer mounting surfaces, which simplifies installation and maintenance.

Advantages of BKZ Industry Thrust Roller Bearings

Wide Range of Sizes and Configurations

BKZ Industry offers a wide range of sizes and configurations of thrust roller bearings, including cylindrical roller, needle roller, tapered roller, and spherical roller thrust bearings. Customers can find different types and sizes from one factory, simplifying sourcing and supply management.

Strong Manufacturing Capacity

With over 400 employees, more than 15 production lines, and a daily production capacity exceeding 60,000 pieces, BKZ Industry has strong manufacturing capacity and can meet large-volume bearing production requirements.

Custom Design and OEM Supported

BKZ Industry has an engineering team of more than 50 engineers who can design and manufacture thrust roller bearings based on customer requirements. Custom design, OEM, and special bearing solutions are supported according to drawings or technical specifications.

Strict Quality Control

BKZ Industry uses various bearing testing equipment, including roundness measuring instruments, surface roughness testers, hardness testers, clearance measuring instruments, vibration and noise testers, life testing machines, and metallographic microscopes to ensure strict quality control throughout the production process.

ISO 9001 + 15 Year Experience

With 15 years of bearing manufacturing experience, BKZ Industry operates under an ISO 9001 quality management system to ensure stable quality, reliable performance, and consistent production standards.

Thrust Roller Bearing Types

Thrust roller bearings are classified based on roller type, including cylindrical roller thrust bearings, needle roller thrust bearings, tapered roller thrust bearings, and spherical roller thrust bearings, to meet different load capacities, speeds, and application requirements.

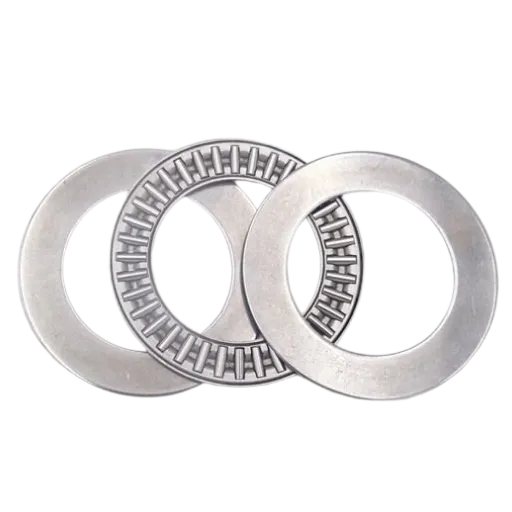

Needle Roller Thrust Bearings

Designed with thin needle rollers and flat washers, this bearing provides high axial load capacity in a very small axial space. The needle rollers increase contact area while keeping the bearing compact and lightweight. It is commonly used in automotive transmissions, power tools, gear pumps, and other equipment where installation space is limited but axial load capacity is required.

Get a Quote >>

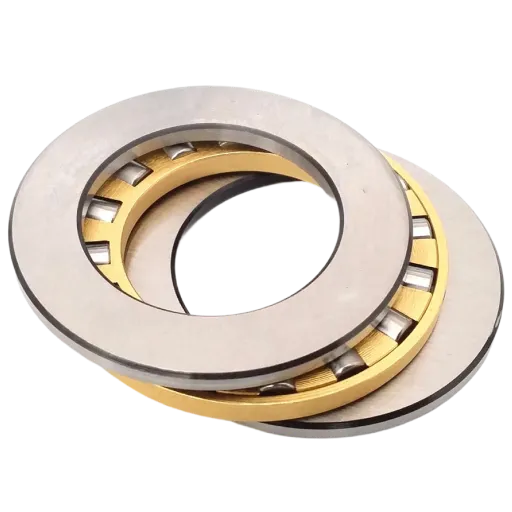

Cylindrical Roller Thrust Bearings

This type uses cylindrical rollers arranged in a cage between precision ground race washers, allowing line contact for very high axial load capacity and high stiffness. It is suitable for low to medium speed applications under heavy axial loads. Typical applications include rolling mills, crane hooks, heavy gearboxes, and industrial machinery.

Get a Quote >>

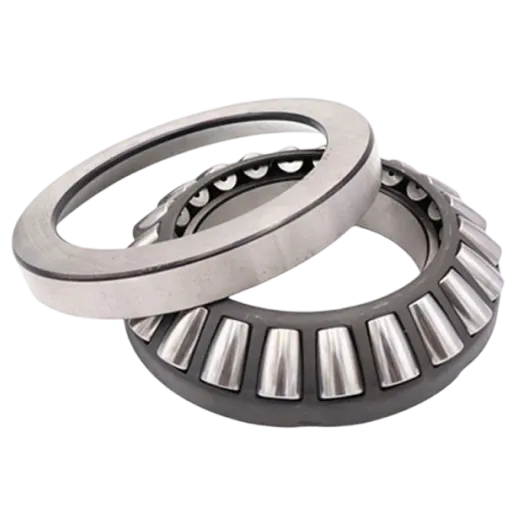

Spherical Roller Thrust Bearings

Featuring barrel-shaped rollers and a spherical raceway, this bearing can automatically compensate for shaft misalignment and housing deflection. It can support extremely heavy axial loads together with moderate radial loads and perform reliably under shock and vibration conditions. It is widely used in mining equipment, construction machinery, marine drives, and large industrial gearboxes.

Get a Quote >>

Tapered Roller Thrust Bearings

With tapered rollers and tapered raceways, this bearing provides excellent axial load capacity, high rigidity, and accurate axial positioning. The tapered geometry improves load distribution and stability under heavy loads. It is commonly used in construction equipment, gear drives, crane systems, and industrial transmissions requiring high axial stability.

Get a Quote >>

*We also offer Thrust Ball Bearings not listed here. Contact us for more options.

Thrust Roller Bearing Size Chart

Thrust roller bearing size charts include cylindrical roller thrust bearings, needle roller thrust bearings, spherical roller thrust bearings, and tapered roller thrust bearings. Due to the wide range of designs and dimensions, it is not possible to include all specifications in a single chart. Therefore, we only list some commonly used sizes based on our experience working with customers. For specific applications or detailed dimensions, please contact us for further information.

Bearing No	Bore Diameter d (mm)	Outside Diameter D (mm)	Total Height H (mm)	Dynamic Load Rating Ca (kN)	Static Load Rating C0a (kN)	Fatigue Load Limit Pu (kN)	Reference Speed (rpm)	Limiting Speed (rpm)	Weight (kg)
81102	15	28	9	11.2	27	2.45	4300	8500	0.024
81103	17	30	9	12.2	31.5	2.85	4300	8500	0.027
81104	20	35	10	18.6	48	4.65	3800	7500	0.037
81105	25	42	11	25	69.5	6.8	3200	6300	0.053
81106	30	47	11	27	78	7.65	3000	6000	0.057
81206	30	52	16	50	134	13.4	2400	4800	0.12
81107	35	52	12	29	93	9.15	2800	5600	0.073
81207	35	62	18	62	190	19.3	2000	4000	0.2
81108	40	60	13	43	137	13.7	2400	5000	0.11
81208	40	68	19	83	255	26.5	1900	3800	0.25
81109	45	65	14	45	153	15.3	2200	4500	0.13
81209	45	73	20	83	255	26.5	1800	3600	0.29
81110	50	70	14	47.5	166	16.6	2200	4300	0.14
81210	50	78	22	91.5	300	31	1700	3400	0.36
81111	55	78	16	69.5	285	29	1900	3800	0.22
81211	55	90	25	122	390	40	1400	2800	0.57
29412	60	130	42	390	915	114	2800	5000	2.2
81112	60	85	17	80	300	30.5	1800	3600	0.27
81212	60	95	26	137	465	47.5	1400	2800	0.64
29413	65	140	45	455	1080	137	2600	4800	3.2
81113	65	90	18	83	320	32.5	1700	3400	0.31
81213	65	100	27	140	490	50	1300	2600	0.72
29414	70	150	48	520	1250	153	2400	4300	3.9
81114	70	95	18	86.5	345	34.5	1600	3200	0.33
81214	70	105	27	146	530	55	1300	2600	0.77
29415	75	160	51	600	1430	173	2400	4000	4.7
81115	75	100	19	83	335	34	1600	3200	0.39
81215	75	110	27	137	490	50	1200	2400	0.8
29416	80	170	54	670	1630	193	2200	3800	5.6
81116	80	105	19	81.5	335	34	1500	3000	0.4
81216	80	115	28	160	610	63	1200	2400	0.9
29317	85	150	39	380	1060	129	2400	4000	2.75
29417	85	180	58	735	1800	212	2000	3600	6.75
81117	85	110	19	88	365	37.5	1500	3000	0.42
81217	85	125	31	170	640	67	1100	2200	1.25
29318	90	155	39	400	1080	132	2400	4000	2.85
29418	90	190	60	815	2000	232	1900	3400	7.75
81118	90	120	22	110	450	45.5	1300	2600	0.62
81218	90	135	35	232	865	90	1000	2000	1.75
29320	100	170	42	465	1290	156	2200	3600	3.65
29420	100	210	67	980	2500	275	1700	3000	10.5
81120	100	135	25	156	630	62	1200	2400	0.95
81220	100	150	38	270	1060	104	900	1800	2.2
29322	110	190	48	610	1730	204	1900	3200	5.3
29422	110	230	73	1180	3000	325	1600	2800	13.5
81122	110	145	25	163	680	65.5	1100	2200	1.05
81222	110	160	38	260	1000	98	850	1700	2.3
29324	120	210	54	765	2120	245	1700	2800	7.35
29424	120	250	78	1370	3450	375	1500	2600	17.5
81124	120	155	25	170	735	68	1100	2200	1.1
81224	120	170	39	270	1100	104	800	1600	2.55
29326	130	225	58	865	2500	280	1600	2600	9
29426	130	270	85	1560	4050	430	1300	2400	22
81126	130	170	30	200	880	81.5	950	1900	1.7
81226	130	190	45	380	1460	137	700	1400	4.2
29328	140	240	60	980	2850	315	1500	2600	10.5
29428	140	280	85	1630	4300	455	1300	2400	23
81128	140	180	31	208	930	85	900	1800	1.9
81228	140	200	46	360	1400	129	700	1400	4.55
29230	150	215	39	408	1600	180	1800	2800	4.3
29330	150	250	60	1000	2850	315	1500	2400	11
29430	150	300	90	1860	5100	520	1200	2200	28
81130	150	190	31	212	1000	88	850	1700	2
81230	150	215	50	465	1900	170	630	1300	5.9
29332	160	270	67	1180	3450	375	1300	2200	14.5
29432	160	320	95	2080	5600	570	1100	2000	33.5
81132	160	200	31	216	1020	90	850	1700	2.2
81232	160	225	51	480	2000	176	600	1200	6.2
29334	170	280	67	1200	3550	365	1300	2200	15
29434	170	340	103	2360	6550	640	1100	1900	44.5
81134	170	215	34	285	1340	118	800	1600	2.95
81234	170	240	55	540	2280	200	560	1100	7.7
29236	180	250	42	495	2040	212	1600	2600	5.8
29336	180	300	73	1430	4300	440	1200	2000	19.5
29436	180	360	109	2600	7350	710	1000	1800	52.5
81136	180	225	34	270	1270	110	750	1500	3.05
81236	180	250	56	550	2400	204	560	1100	8.25
29338	190	320	78	1630	4750	490	1100	1900	23.5
29438	190	380	115	2850	8000	765	950	1700	60.5
81138	190	240	37	310	1460	125	700	1400	3.85
81238	190	270	62	695	2900	250	500	1000	10.5
29240	200	280	48	656	2650	285	1400	2200	9.3
29340	200	340	85	1860	5500	550	1000	1700	29.5
29440	200	400	122	3200	9000	850	850	1600	72
81140	200	250	37	310	1500	127	700	1400	4
81240	200	280	62	720	3100	255	500	1000	12
29244	220	300	48	690	3000	310	1300	2200	10
29344	220	360	85	2000	6300	610	1000	1700	33.5
29444	220	420	122	3350	9650	900	850	1500	75
81144	220	270	37	335	1700	137	670	1300	4.5
81244	220	300	63	750	3350	275	480	950	13
29248	240	340	60	799	3450	335	1100	1800	16.5
29348	240	380	85	2040	6550	630	1000	1600	35.5
29448	240	440	122	3400	10200	930	850	1500	80
81148	240	300	45	475	2450	196	560	1100	7.25
81248	240	340	78	1100	4900	390	400	800	22
29252	260	360	60	817	3650	345	1100	1700	18.5
29352	260	420	95	2550	8300	780	850	1400	49
29452	260	480	132	4050	12900	1080	750	1300	105
81152	260	320	45	490	2600	200	530	1100	7.85
81252	260	360	79	1140	5300	415	380	750	24
29256	280	380	60	863	4000	375	1000	1700	19.5
29356	280	440	95	2550	8650	800	850	1400	53
29456	280	520	145	4900	15300	1320	670	1200	135
81156	280	350	53	680	3550	275	480	950	10.5
81256	280	380	80	1160	5500	425	360	750	26
29260	300	420	73	1070	4800	465	900	1400	30.5
29360	300	480	109	3100	10600	930	750	1200	75
29460	300	540	145	4310	16600	1340	600	1200	140
29264	320	440	73	1110	5100	465	850	1400	33
29364	320	500	109	3350	11200	1000	750	1200	78
29464	320	580	155	4950	19000	1530	560	1100	175
29268	340	460	73	1130	5400	480	850	1300	33.5
29368	340	540	122	2710	11000	950	600	1100	105
29468	340	620	170	5750	22400	1760	500	1000	220
29272	360	500	85	1460	6800	585	750	1200	52
29372	360	560	122	2760	11600	980	600	1100	110
29472	360	640	170	5350	21200	1630	500	950	230
29276	380	520	85	1580	7650	655	700	1100	53
29376	380	600	132	3340	14000	1160	530	1000	140
29476	380	670	175	5870	24000	1860	480	900	260
29280	400	540	85	1610	8000	695	700	1100	55.5
29380	400	620	132	3450	14600	1200	530	950	150
29480	400	710	185	6560	26500	1960	450	850	310
81180	400	480	65	965	5600	390	360	700	23
29284	420	580	95	1990	9800	815	630	1000	75.5
29384	420	650	140	3740	16000	1290	500	900	170
29484	420	730	185	6730	27500	2080	430	850	325
81184	420	500	65	980	5850	400	340	700	24
29288	440	600	95	2070	10400	850	630	1000	78
29388	440	680	145	4490	19300	1560	480	850	180
29488	440	780	206	7820	32000	2320	380	750	410
81188	440	540	80	1430	8000	550	300	600	39.5
29292	460	620	95	2070	10600	865	600	950	81
29392	460	710	150	4310	19000	1500	450	800	215
29492	460	800	206	7990	33500	2450	380	750	425
81192	460	560	80	1460	8500	570	300	600	41
29296	480	650	103	2350	11800	950	560	900	98
29396	480	730	150	4370	19600	1530	450	800	220
29496	480	850	224	9550	39000	2800	340	670	550
81196	480	580	80	1460	8650	585	280	560	43
292/500	500	670	103	2390	12500	1000	560	900	100
293/500	500	750	150	4490	20400	1560	430	800	235
294/500	500	870	224	9370	40000	2850	340	670	560
811/500	500	600	80	1560	9300	620	280	560	44
292/530	530	710	109	3110	15300	1220	530	850	115
293/530	530	800	160	5230	23600	1800	400	750	270
294/530	530	920	236	10500	44000	3100	320	630	650
811/530	530	640	85	1730	10600	680	260	530	55.5
292/560	560	750	115	2990	16000	1220	480	800	140
294/560	560	980	250	12000	51000	3550	300	560	810
811/560	560	670	85	1760	11100	710	260	500	58
292/600	600	800	122	3740	18600	1460	450	700	170
293/600	600	900	180	7530	34500	2600	340	630	405
294/600	600	1030	258	13100	56000	4000	280	530	845
811/600	600	710	85	1800	11600	720	240	500	62
292/630	630	850	132	4770	23600	1800	400	670	210
293/630	630	950	190	8450	38000	2900	320	600	485
294/630	630	1090	280	14400	62000	4150	260	500	1040
811/630	630	750	95	2160	13700	865	220	450	80
292/670	670	900	140	4200	22800	1660	380	630	255
294/670	670	1150	290	15400	68000	4500	240	450	1210
293/710	710	1060	212	9950	45500	3400	280	500	660
294/710	710	1220	308	17600	76500	5000	220	430	1500
292/750	750	1000	150	6100	31000	2320	340	560	325
293/750	750	1120	224	9370	45000	3050	260	480	770
294/750	750	1280	315	18700	85000	5500	200	400	1650
292/800	800	1060	155	6560	34500	2550	320	530	380
293/800	800	1180	230	9950	49000	3250	240	450	865
294/800	800	1360	335	20200	93000	5850	190	360	2025
292/850	850	1120	160	6730	36000	2550	300	500	425
294/850	850	1440	354	23900	108000	7100	170	340	2390
294/900	900	1520	372	26700	122000	7200	160	300	2650
292/950	950	1250	180	8280	45500	3100	260	430	600
294/950	950	1600	390	28200	132000	7800	140	280	3065
294/1000	1000	1670	402	31100	140000	8650	130	260	3380
292/1060	1060	1400	206	10500	58500	3750	220	360	860
294/1060	1060	1770	426	33400	156000	8500	120	240	4280
292/1180	1180	1520	206	10900	64000	3750	220	340	950
293/1250	1250	1800	330	24800	129000	7500	130	240	2770
293/1600	1600	2280	408	36800	200000	11800	90	160	5375

Thrust Roller Bearing Applications

Thrust roller bearings are widely used in applications requiring the support of high axial loads, especially in heavy-duty and high-load environments, including:

Agriculture

Tractors
Harvesters
Seed drills
Irrigation pumps
Grain augers
Plowing equipment

Automotive

Gearboxes
Automatic transmissions
Differentials
Steering systems
Clutch systems
Wheel hubs (heavy-duty vehicles)

Construction

Excavators
Cranes
Bulldozers
Loaders
Concrete mixers
Tower cranes

Mining

Crushers
Ball mills
Conveyor systems
Drilling rigs
Vibrating screens
Loaders

Marine

Ship propulsion systems
Marine gearboxes
Thrusters
Winches
Rudder systems
Deck machinery

Energy

Wind turbines
Hydropower generators
Steam turbines
Compressors
Pumps
Oil & gas drilling equipment

FAQs About Thrust Roller Bearing

Q1. Can I Customize Thrust Roller Bearings?

Yes, thrust roller bearings can be customized according to specific application requirements. Common customization options include special bearing materials, heat treatment processes, cage types, lubrication grooves, surface coatings, and sealing structures. Internal clearance, roller profile, and bearing height can also be modified to improve load capacity, service life, and performance under heavy load or harsh operating conditions.

Q2. What Are The Limitations Of Thrust Roller Bearings?

Thrust roller bearings are primarily designed to support axial loads and usually cannot carry radial loads. They also require precise alignment and rigid shaft support to operate properly. Compared with ball thrust bearings, they may generate more friction and heat at very high speeds. Proper lubrication, installation accuracy, and sufficient axial space are important to avoid premature wear and failure.

Q3. How Do I Select A Thrust Roller Bearing?

Selecting a thrust roller bearing depends on axial load, operating speed, installation space, alignment conditions, and lubrication method. Cylindrical thrust roller bearings are suitable for very high axial loads, while spherical thrust roller bearings are better for applications with misalignment or combined loads. Life calculation, working temperature, environment, and mounting structure should also be considered during selection.

Q4. What Is The Difference Between Thrust Roller Bearings And Thrust Ball Bearings?

The main difference is the rolling element type and load capacity. Thrust roller bearings use rollers with line contact, allowing much higher axial load capacity. Thrust ball bearings use balls with point contact, making them suitable for higher speeds but lower loads. Thrust roller bearings are typically used in heavy machinery, while thrust ball bearings are used in lighter load applications.

Q5. Thrust Roller Bearings Vs Deep Groove Ball Bearings: When To Use Each?

Thrust roller bearings are used when the load is mainly axial and very heavy, such as in gearboxes, cranes, rolling mills, and large machinery. Deep groove ball bearings are used when loads are mainly radial with moderate axial loads and higher speeds. If the application mainly supports axial load, use thrust bearings; if radial load dominates, use deep groove ball bearings.

Q6. What Are Stainless Steel Needle Roller Thrust Bearings?

Stainless steel needle roller thrust bearings are axial bearings made from stainless steel materials for corrosion-resistant environments. They use needle rollers to provide high axial load capacity in a very compact axial space. These bearings are commonly used in food processing equipment, medical devices, marine machinery, and chemical equipment where corrosion resistance, hygiene, and compact design are required.

More FAQS >>

Bearing Solutions for Different Industries

In addition to thrust roller bearings, we supply a wide range of industrial bearings for different operating conditions and equipment requirements, including thrust ball bearings, stainless steel bearings, ceramic bearings, and high temperature bearings.

Thrust Ball Bearings

Stainless Steel Bearings

Ceramic Bearings

High Temperature Bearings

Mounted Ball Bearing Units

Insert Bearings

Robotics Bearings

Forklift Bearings

Get a Fast Quote for Thrust Roller Bearings

Send us your bearing number, dimensions, drawings, or application details for thrust roller bearings. Our engineering team will provide fast quotation, technical support, and bearing selection assistance. We help customers find suitable replacements, ensure compatibility, and improve equipment reliability and service life.

Products

Industries

Resources

About Us

Contact Us

Hot-selling Bearings

Special Bearings

Application-based Bearings

Related Products

Industries

Resources

Hot-selling Bearings

Special Bearings

Application-based Bearings

Related Products

Thrust Roller Bearings

Benefits & Advantages of BKZ Industry Thrust Roller Bearings

Benefits of Thrust Roller Bearings

Advantages of BKZ Industry Thrust Roller Bearings

Thrust Roller Bearing Types

Needle Roller Thrust Bearings

Cylindrical Roller Thrust Bearings

Spherical Roller Thrust Bearings

Tapered Roller Thrust Bearings

Thrust Roller Bearing Size Chart

Thrust Roller Bearing Applications

Agriculture

Automotive

Construction

Mining

Marine

Energy

FAQs About Thrust Roller Bearing

Bearing Solutions for Different Industries

Get a Fast Quote for Thrust Roller Bearings

Thrust Roller Bearings

Benefits & Advantages of BKZ Industry Thrust Roller Bearings

Benefits of Thrust Roller Bearings

Advantages of BKZ Industry Thrust Roller Bearings

Thrust Roller Bearing Types

Needle Roller Thrust Bearings

Cylindrical Roller Thrust Bearings

Spherical Roller Thrust Bearings

Tapered Roller Thrust Bearings

Thrust Roller Bearing Size Chart​

Thrust Roller Bearing Applications

Agriculture

Automotive

Construction

Mining

Marine

Energy

FAQs About Thrust Roller Bearing

Bearing Solutions for Different Industries

Get a Fast Quote for Thrust Roller Bearings

Get Quotation Now

Thrust Roller Bearing Size Chart
