Double Row Spherical Roller Bearings

Double row spherical roller bearings feature two rows of barrel-shaped rollers, a common spherical raceway in the outer ring, and two raceways in the inner ring. This design enables them to accommodate misalignment while carrying heavy radial loads and axial loads in both directions.
With over 15 years of manufacturing experience, BKZ Industry supplies a wide range of spherical roller bearings, covering standard series from 213 to 249, with both open and sealed options available.
These bearings are widely used in mining, steel mills, cement equipment, paper making machines, and gearboxes.
BKZ Industry is ISO 9001 certified and provides technical support, engineering services, and customized bearing solutions for various industrial applications.

Get a Quote

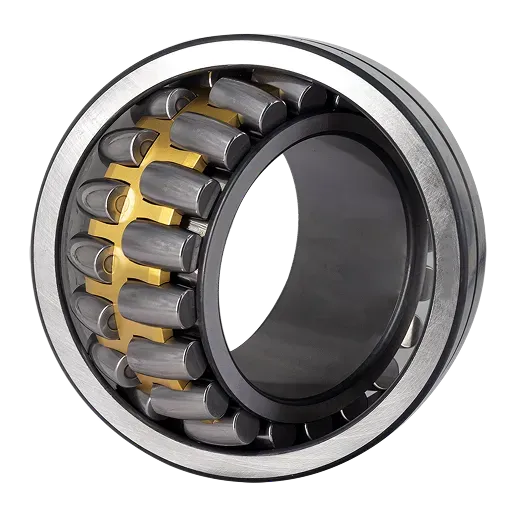

Double Row Spherical Roller Bearings Feature Two Rows Of Barrel Shaped Rollers 2

Benefits & Advantages of BKZ Industry Double Row Spherical Roller Bearings

BKZ Industry double row self-aligning spherical roller bearings are engineered for demanding applications involving heavy loads, shock loads, and vibration. With over 15 years of manufacturing and export experience, BKZ delivers reliable performance, consistent quality, and dependable supply for global OEM and industrial customers.

Key Features of Double Row Spherical Roller Bearings

High Load Capacity

Featuring two rows of barrel-shaped rollers, these bearings provide a larger contact area with line contact and optimized load distribution. The advanced roller geometry enables them to carry heavy radial loads while supporting axial loads in both directions.

Lower Vibration and Noise

The spherical outer ring raceway allows automatic alignment, while logarithmic roller profiles reduce edge stress and ensure more even load distribution. This design effectively minimizes vibration and ensures low noise operation under load.

Allows Shaft Misalignment

The outer ring features a spherical raceway whose center coincides with the bearing center. This design enables the bearing to automatically accommodate angular misalignment between the shaft and housing.

Long Service Life

Optimized internal geometry and uniform load distribution, combined with high-quality bearing steel (e.g., GCr15 / 100Cr6), reduce stress concentration and wear, resulting in extended service life.

Reduced Maintenance Frequency

Self-aligning capability and reduced internal stress help extend lubrication life, while optional sealed designs prevent contamination, reducing relubrication needs and enabling more reliable, continuous operation.

Why Choose BKZ Industry

Experienced Manufacturing Process

With over 15 years of experience in bearing manufacturing, BKZ Industry has developed stable and mature production processes, ensuring consistent quality and reliable performance in demanding applications such as mining, steel, and industrial gear systems.

Strict Quality Control System

From raw material inspection and heat treatment to clearance control and load verification, every stage is strictly monitored to ensure stable performance, reduced failure risk, and consistent product quality.

Extensive Export Experience

BKZ Industry has served over 1,000 customers across 50+ countries, including distributors and OEM clients, with strong experience in handling international standards, documentation, and export requirements.

Custom Design Supported

Beyond standard products, our engineering team provides customized bearing solutions based on real operating conditions, including load analysis, application requirements, and performance optimization.

95% -99% On Time Delivery

BKZ Industry maintains a high on-time delivery rate of around 95%–99%, based on confirmed production schedules and long-term customer cooperation.

Get a Quote

Types of Double Row Spherical Roller Bearings

Double row spherical roller bearings are primarily classified by dimension series, including 213, 222, 223, 230, 231, 232, 239, 241, 248, and 249 series. In addition, they can be configured with different sealing types (open or sealed), bore types (cylindrical or tapered), and cage materials (steel or brass) to meet various application requirements. Here are some of these types.

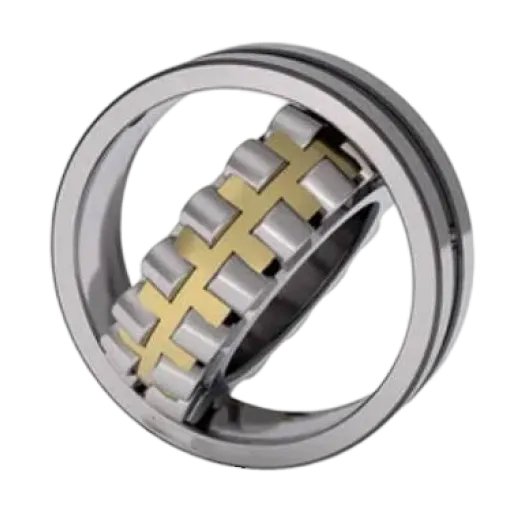

213 Series Double Row Spherical Roller Bearings

213 Series Double-row Spherical Roller Bearings

With a bore range of 20–140 mm, the 213 series is designed with a compact cross-section and reduced width, making it ideal for installations where space is limited. Its two-row roller structure supports moderate loads, and it is commonly supplied with steel or brass cages in open or sealed configurations for gearboxes and pumps.

Get a Quote >>

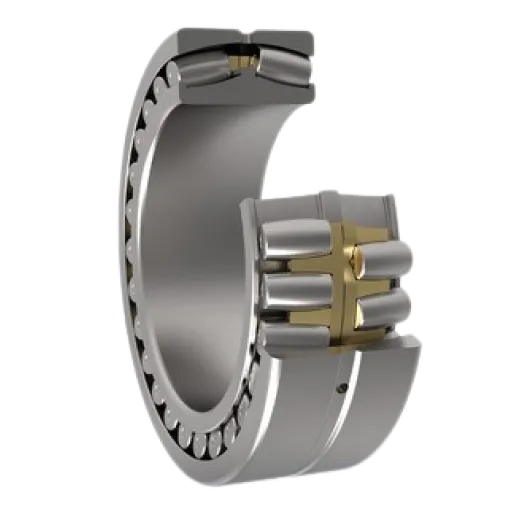

222 Series Double Row Spherical Roller Bearings

222 Series Double-row Spherical Roller Bearings

Spanning 20–240 mm bore sizes, the 222 series offers a well-balanced combination of size and load capacity. Its optimized internal geometry improves load distribution and running stability. Flexible mounting options are available, along with multiple cage materials, making it suitable for electric motors and conveyor systems.

Get a Quote >>

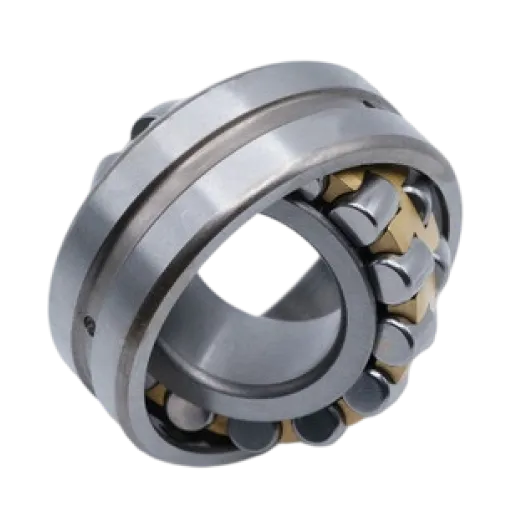

223 Series Double Row Spherical Roller Bearings

223 Series Double-row Spherical Roller Bearings

Designed for 25–300 mm bore sizes, the 223 series features increased width and reinforced internal structure to handle heavier loads and shock conditions. Its robust cage design enhances durability, making it particularly effective in demanding environments such as mining equipment and vibrating screens.

Get a Quote >>

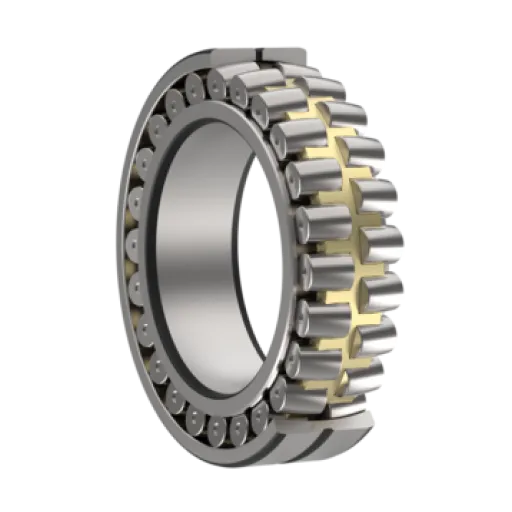

230 Series Double Row Spherical Roller Bearings

230 Series Double-row Spherical Roller Bearings

Covering 90–360 mm bore sizes, the 230 series is characterized by a relatively narrow profile that supports higher operating speeds. Its internal design focuses on reducing friction and heat generation, and it is widely applied in industrial drives, fans, and transmission systems.

Get a Quote >>

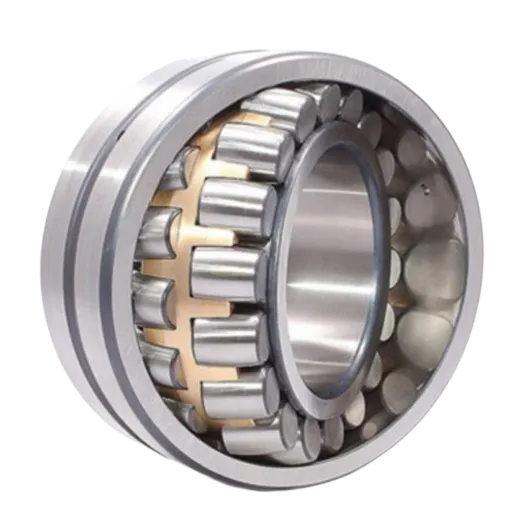

240 Series Doubl Row Spherical Roller Bearings

240 Series Double-row Spherical Roller Bearings

With bore sizes from 100–1000 mm, the 240 series represents a heavy-duty solution with a large cross-section and exceptional load capacity. For tapered bore designs, it uses a 1:30 taper (K30), providing enhanced mounting precision for large shafts. It is widely used in steel mills and heavy industrial machinery.

Get a Quote >>

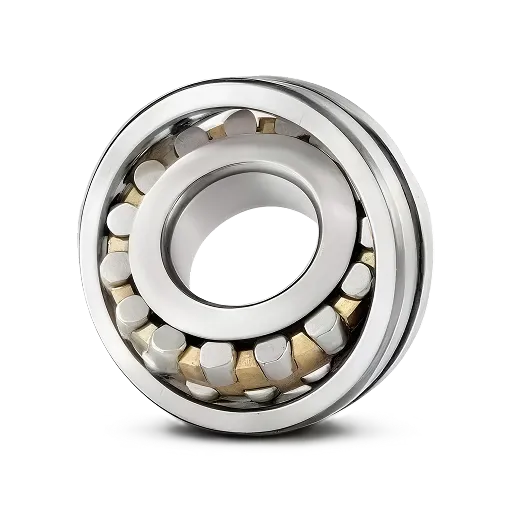

241 Series Doubl Row Spherical Roller Bearings

241 Series Double-row Spherical Roller Bearings

With a bore range typically from 120–1000 mm, the 241 series features a very wide cross-section and high load capacity, similar to the 240 series but optimized for even heavier applications. For tapered bore designs, it adopts a 1:30 taper (K30), ensuring accurate mounting on large shafts. Its robust internal structure and strong cages make it suitable for steel mills, mining, and heavy-duty industrial equipment.

Get a Quote >>

*We also offer bearings not listed here. Contact us for more options.

Double Row Spherical Roller Bearing Size Chart​

Double row spherical roller bearings from BKZ Industry cover a wide range from 213 to 241 series, each with distinct dimensional variations to suit different applications. Due to the extensive size range, a single chart cannot include all configurations. Below are selected size charts based on common customer requirements and past supply experience. For specific sizes or customized dimensions not listed here, please feel free to contact us directly for support.

Get a Quote
Bearing Part Number Bore Diameter d (mm) Outside Diameter D (mm) Bearing Width B (mm) Dynamic Load Rating Cr (kN) Static Load Rating Cor (kN) Limiting Speed (rpm) Weight (kg)
22205/20 20 52 18 49.9 44 17000 0.28
22205 25 52 18 49.9 44 17000 0.26
21305 25 62 17 49.1 41.5 12000 0.28
22206 30 62 20 66.1 60 14000 0.29
21306 30 72 19 65.7 61 10000 0.41
22207 35 72 23 88.8 85 12000 0.45
22208 40 80 23 98.5 90 11000 0.53
21308 40 90 23 107 108 9500 0.75
22308 40 90 33 155 140 8000 1.05
22209 45 85 23 104 98 10000 0.58
22309 45 100 36 190 183 7000 1.4
22210 50 90 23 107 108 9500 0.63
21310 50 110 27 159 166 7500 1.35
22310 50 110 40 228 224 6300 1.9
22211 55 100 25 129 127 8500 0.84
21311 55 120 29 159 166 7500 1.7
22311 55 120 43 280 280 5600 2.45
22212 60 110 28 159 166 7500 1.15
21312 60 130 31 217 240 6300 2.1
22312 60 130 46 325 335 5300 3.1
24013 65 100 35 137 173 6300 0.95
24013 65 100 35 137 173 2600 0.95
22213 65 120 31 198 216 7000 1.55
21313 65 140 33 243 270 6000 2.55
22313 65 140 48 357 360 5000 3.75
22214 70 125 31 213 228 6700 1.55
21314 70 150 35 291 325 5600 3.1
22314 70 150 51 413 430 4500 4.55
24015 75 115 40 181 232 5300 1.55
24015 75 115 40 181 232 2300 1.55
22215 75 130 31 217 240 6300 1.7
21315 75 160 37 291 325 5600 3.75
22315 75 160 55 462 475 4300 5.55
22216 80 140 33 243 270 6000 2.1
21316 80 170 39 331 375 5300 4.45
22316 80 170 58 516 530 4000 6.6
22217 85 150 36 291 325 5600 2.7
21317 85 180 41 331 375 5300 5.2
22317 85 180 60 577 620 3800 7.65
22218 90 160 40 331 375 5300 3.4
23218 90 160 52.4 372 440 3800 4.65
21318 90 190 43 393 450 4800 6.1
22318 90 190 64 637 695 3600 9.05
22219 95 170 43 393 450 4800 4.15
21319 95 200 45 433 490 4500 7.05
22319 95 200 67 699 765 3400 10.5
24020 100 150 50 296 415 4000 3.15
24020 100 150 50 296 415 1700 3.15
23120 100 165 52 385 490 4000 4.55
23120 100 165 52 386 490 1700 4.55
24120 100 165 65 468 640 3200 5.65
22220 100 180 46 433 490 4500 4.9
23220 100 180 60.3 498 600 3400 6.85
21320 100 215 47 433 490 4500 8.6
22320 100 215 73 847 950 3000 13.5
23022 110 170 45 326 440 4300 3.8
24022 110 170 60 437 620 3600 5
23122 110 180 56 450 585 3600 5.75
23122 110 180 56 451 585 800 5.75
24122 110 180 69 539 750 3000 7.1
24122 110 180 69 540 750 630 7.1
22222 110 200 53 572 640 4000 7
23222 110 200 69.8 626 765 3200 9.85
23222 110 200 69.8 627 765 640 9.85
22322 110 240 80 989 1120 2800 18.5
23024 120 180 46 366 500 4000 4.2
23024 120 180 46 367 500 1400 4.2
24024 120 180 60 456 670 3400 5.45
24024 120 180 60 457 670 670 5.45
23124 120 200 62 534 695 3400 8
24124 120 200 80 679 950 2600 10.5
24124 120 200 80 680 950 560 10.5
22224 120 215 58 652 765 3800 8.7
23224 120 215 76 732 930 2800 12
23224 120 215 76 734 930 600 12
22324 120 260 86 1019 1120 2600 23
22324 120 260 86 1022 1120 600 23
23026 130 200 52 452 610 3600 6
23026 130 200 52 452 610 800 6
24026 130 200 69 569 815 3000 8.05
24026 130 200 69 570 830 600 8.05
23126 130 210 64 586 780 3200 8.8
24126 130 210 80 699 1000 2400 11
24126 130 210 80 701 1000 530 11
22226 130 230 64 758 930 3600 11
23226 130 230 80 826 1060 2600 14.5
23226 130 230 80 828 1060 530 14.5
22326 130 280 93 1176 1320 2400 29
22326 130 280 93 1178 1320 500 29
23028 140 210 53 485 680 3400 6.55
23028 140 210 53 485 680 700 6.55
24028 140 210 69 600 900 2800 8.55
23128 140 225 68 659 900 2800 10.5
24128 140 225 85 796 1160 2200 13.5
24128 140 225 85 797 1160 450 13.5
22228 140 250 68 743 900 3200 14
22228 140 250 68 744 900 670 14
23228 140 250 88 962 1250 2400 19
23228 140 250 88 963 1250 480 19
22328 140 300 102 1357 1560 2200 36.5
22328 140 300 102 1359 1560 430 36.5
23030 150 225 56 531 750 3200 7.95
23030 150 225 56 532 750 670 7.95
24030 150 225 75 680 1040 2600 10.5
23130 150 250 80 883 1200 2600 16
23130 150 250 80 884 1200 560 16
24130 150 250 100 1054 1530 2000 20
24130 150 250 100 1056 1530 400 20
22230 150 270 73 898 1080 3000 18
22230 150 270 73 899 1080 630 18
23230 150 270 96 1129 1460 2200 24.5
23230 150 270 96 1132 1460 430 24.5
22330 150 320 108 1539 1760 2000 43.5
22330 150 320 108 1541 1760 400 43.5
23032 160 240 60 614 880 3000 9.7
23032 160 240 60 615 880 670 9.7
24032 160 240 80 783 1200 2400 13
24032 160 240 80 784 1200 450 13
23132 160 270 86 1029 1370 2400 20.5
23132 160 270 86 1030 1400 530 20.5
24132 160 270 109 1227 1760 1900 25
22232 160 290 80 1043 1290 2800 22.5
22232 160 290 80 1044 1290 600 22.5
23232 160 290 104 1281 1660 2200 31
22332 160 340 114 1680 1960 1900 52
22332 160 340 114 1683 1960 380 52
23034 170 260 67 745 1060 2800 13
23034 170 260 67 746 1080 630 13
24034 170 260 90 963 1460 2400 17.5
24034 170 260 90 966 1500 400 17.5
23134 170 280 88 1086 1500 2400 22
23134 170 280 88 1088 1500 480 22
24134 170 280 109 1270 1860 1800 27.5
24134 170 280 109 1273 1860 360 27.5
22234 170 310 86 1183 1460 2600 28.5
22234 170 310 86 1185 1460 500 28.5
23234 170 310 110 1472 1930 2000 37.5
22334 170 360 120 1863 2160 1800 61
23936 180 250 52 519 830 2800 7.9
23036 180 280 74 883 1250 2600 17
23036 180 280 74 884 1270 560 17
24036 180 280 100 1134 1730 2200 23
23136 180 300 96 1263 1760 2200 28
23136 180 300 96 1264 1800 430 28
24136 180 300 118 1449 2160 1600 34.5
24136 180 300 118 1452 2160 360 34.5
22236 180 320 86 1237 1560 2600 29.5
22236 180 320 86 1239 1560 530 29
23236 180 320 112 1557 2120 1900 39.5
22336 180 380 126 2077 2450 1700 71.5
23938 190 260 52 499 800 2600 8.3
23038 190 290 75 916 1340 2400 18
24038 190 290 100 1164 1800 2000 24.5
23138 190 320 104 1456 2080 2000 35
23138 190 320 104 1458 2080 400 35
24138 190 320 128 1652 2500 1500 43
24138 190 320 128 1655 2500 340 43
22238 190 340 92 1342 1700 2400 36.5
22238 190 340 92 1345 1700 480 35
23238 190 340 120 1759 2400 1800 48
22338 190 400 132 2232 2650 1600 82.5
23940 200 280 60 651 1040 2400 11.5
23040 200 310 82 1058 1530 2200 23.5
23040 200 310 82 1059 1530 480 22
24040 200 310 109 1353 2120 1900 31
23140 200 340 112 1665 2360 1900 43
23140 200 340 112 1668 2360 380 43
24140 200 340 140 1865 2800 1400 53.5
24140 200 340 140 1871 2800 320 53.5
22240 200 360 98 1526 1930 2200 43.5
22240 200 360 98 1529 1930 430 42
23240 200 360 128 1947 2700 1700 58
23240 200 360 128 1950 2700 340 58
22340 200 420 138 2439 2900 1500 95
23944 220 300 60 661 1080 2200 12.5
23044 220 340 90 1261 1860 2000 30.5
23044 220 340 90 1262 1860 430 29
24044 220 340 118 1628 2600 1700 40
23144 220 370 120 1888 2750 1700 53.5
23144 220 370 120 1891 2750 360 53.5
24144 220 370 150 2197 3350 1200 67
22244 220 400 108 1835 2360 2000 60.5
22244 220 400 108 1839 2360 380 58
23244 220 400 144 2485 3450 1500 81.5
22344 220 460 145 2839 3450 1400 120
22344 220 460 145 2844 3450 300 115
23948 240 320 60 685 1160 2000 13.5
23048 240 360 92 1340 2080 1900 33.5
23048 240 360 92 1341 2080 400 32
24048 240 360 118 1663 2700 1600 43
23148 240 400 128 2187 3200 1600 66.5
23148 240 400 128 2191 3200 340 66.5
24148 240 400 160 2489 3900 1100 83
22248 240 440 120 2258 3000 1800 83
23248 240 440 160 3042 4300 1300 110
22348 240 500 155 3229 4000 1300 155
23952 260 360 75 1055 1800 1900 23.5
23052 260 400 104 1675 2550 1700 48.5
23052 260 400 104 1677 2550 360 46
24052 260 400 140 2135 3450 1400 65.5
23152 260 440 144 2664 3900 1400 90.5
23152 260 440 144 2668 3900 320 90.5
24152 260 440 180 3086 4800 950 110
22252 260 480 130 2722 3550 1600 110
23252 260 480 174 3395 4750 1200 140
22352 260 540 165 3680 4550 1100 190
23956 280 380 75 1016 1760 1700 25
23056 280 420 106 1797 2850 1600 52.5
24056 280 420 140 2248 3800 1400 69.5
23156 280 460 146 2784 4250 1300 97
23156 280 460 146 2788 4250 300 97
24156 280 460 180 3183 5100 900 120
22256 280 500 130 2795 3750 1500 115
23256 280 500 176 3425 4900 1100 150
22356 280 580 175 4158 5200 1100 235
23960 300 420 90 1413 2500 1600 39.5
23060 300 460 118 2219 3450 1500 71.5
24060 300 460 160 2821 4750 1200 97
23160 300 500 160 3368 5100 1200 125
23160 300 500 160 3373 5100 260 125
24160 300 500 200 3876 6300 800 160
22260 300 540 140 3239 4250 1400 135
23260 300 540 192 4052 5850 1000 190
23964 320 440 90 1480 2700 1500 42
23064 320 480 121 2348 3800 1400 78
24064 320 480 160 2969 5100 1200 100
23164 320 540 176 3923 6000 1100 165
23164 320 540 176 3929 6100 260 165
24164 320 540 218 4395 7100 700 210
22264 320 580 150 3708 4900 1300 175
23264 320 580 208 4607 6700 950 240
23968 340 460 90 1490 2800 1400 45.5
23068 340 520 133 2812 4550 1300 105
24068 340 520 180 3621 6200 1100 140
23168 340 580 190 4445 6800 1000 210
23168 340 580 190 4452 6800 240 210
24168 340 580 243 5487 8650 630 280
23268 340 620 224 5362 7800 800 295
23972 360 480 90 1456 2750 1300 46
23072 360 540 134 2850 4800 1200 110
24072 360 540 180 3705 6550 1000 145
23172 360 600 192 4515 6950 1000 220
23172 360 600 192 4521 6950 220 214
24172 360 600 243 5737 9300 600 280
22272 360 650 170 4430 6200 850 255
23272 360 650 232 5663 8300 750 335
23976 380 520 106 2011 3800 1200 69
23076 380 560 135 2984 5000 1200 115
24076 380 560 180 3786 6800 950 150
23176 380 620 194 4561 7100 1000 230
24176 380 620 243 5936 9800 530 300
23276 380 680 240 6126 9150 750 375
23980 400 540 106 2038 3900 1200 71
23080 400 600 148 3511 5850 1100 150
24080 400 600 200 4507 8000 900 205
23180 400 650 200 4864 7650 950 265
24180 400 650 250 6331 10600 500 340
23280 400 720 256 6881 10400 670 450
22380 400 820 243 7832 10400 750 650
23984 420 560 106 2083 4150 1100 74.5
23084 420 620 150 3541 6000 1100 155
24084 420 620 200 4610 8300 900 210
24184 420 700 280 7577 12500 480 445
23284 420 760 272 7677 11600 630 535
23988 440 600 118 2506 4900 1000 99.5
23088 440 650 157 3831 6550 1000 180
24892 460 580 118 2082 4900 1100 75.5
23992 460 620 118 2558 5000 1000 105
23092 460 680 163 4065 6950 950 205
24092 460 680 218 5401 10000 800 275
23192 460 760 240 6760 10800 800 440
24192 460 760 300 8608 14600 430 560
23292 460 830 296 8958 13700 560 695
23996 480 650 128 2990 5700 1000 125
23096 480 700 165 3996 6800 950 215
24096 480 700 218 5524 10400 750 285
23196 480 790 248 7362 12000 750 485
24196 480 790 308 9198 15600 400 605
23296 480 870 310 9805 15000 530 800
239/500 500 670 128 2967 6000 950 130
230/500 500 720 167 4358 7800 900 225
240/500 500 720 218 5777 11000 700 295
231/500 500 830 264 8037 12900 700 580
241/500 500 830 325 10123 17000 380 700
232/500 500 920 336 11183 17300 500 985
248/530 530 650 118 2124 5300 950 86
239/530 530 710 136 3308 6700 900 155
230/530 530 780 185 5267 9300 800 310
240/530 530 780 250 6973 13200 670 410
231/530 530 870 272 8526 14000 670 645
241/530 530 870 335 10909 19000 360 830
232/530 530 980 355 13268 20400 480 1200
239/560 560 750 140 3571 7200 850 175
230/560 560 820 195 5779 10200 750 355
239/600 600 800 150 4022 8300 750 220
230/600 600 870 200 6252 11400 700 405
240/600 600 870 272 8502 16300 45 519
240/600 600 870 272 8580 17000 560 520
231/600 600 980 300 10738 18000 560 895
241/600 600 980 375 13522 23600 300 1200
232/600 600 1090 388 15652 25500 400 1600
230/630 630 920 212 6898 12500 670 485
240/630 630 920 290 9307 17600 45 623
240/630 630 920 290 9150 18000 530 645
231/630 630 1030 315 12600 20800 530 1050
241/630 630 1030 400 15001 27000 280 1400
24088 650 650 212 4987 9150 850 245
23188 650 720 226 6215 10000 850 360
24188 650 720 280 7777 13200 450 460
23288 650 790 280 8150 12500 600 590
248/670 670 820 150 3598 9500 700 172
239/670 670 900 170 5146 10800 670 315
230/670 670 980 230 7919 14600 600 600
240/670 670 980 308 10435 20400 500 790
231/670 670 1090 336 13101 22400 500 1250
241/670 670 1090 412 16381 29000 260 1600
232/670 670 1220 438 18650 30500 360 2270
238/710 710 870 118 3013 7500 670 153
239/710 710 950 180 5702 12000 600 365
249/710 710 950 243 6860 15600 500 495
230/710 710 1030 236 8669 16300 560 670
240/710 710 1030 315 11164 22800 450 895
231/710 710 1150 345 14732 26000 450 1450
241/710 710 1150 438 17935 32500 240 1900
232/710 710 1280 450 21208 34500 320 2610
238/750 750 920 128 3405 8500 600 185
239/750 750 1000 185 6138 13200 560 420
249/750 750 1000 250 7699 18000 480 560
230/750 750 1090 250 10061 18600 530 795
240/750 750 1090 335 12235 25000 430 1070
231/750 750 1220 365 16518 29000 430 1700
241/750 750 1220 475 20434 37500 220 2100
248/800 800 980 180 4780 12900 560 300
239/800 800 1060 195 6595 14300 530 470
249/800 800 1060 258 8136 19300 430 640
230/800 800 1150 258 10335 20000 480 895
240/800 800 1150 345 13447 27500 40 1140
240/800 800 1150 345 13431 28500 400 1200
231/800 800 1280 375 18033 31500 400 1920
241/800 800 1280 475 21587 40500 200 2300
232/800 800 1420 488 24973 43000 280 3280
240/560 820 258 7 530 14 20 50
240/560 820 820 258 7621 14600 630 465
231/560 820 920 280 9596 16000 630 740
241/560 820 920 355 12366 21600 320 985
232/560 820 1030 365 13940 22000 430 1350
238/850 850 1030 136 3882 10000 530 240
239/850 850 1120 200 7072 15600 480 560
249/850 850 1120 272 9390 22800 400 740
230/850 850 1220 272 11291 21600 450 1050
240/850 850 1220 365 15078 31000 40 1360
240/850 850 1220 365 15183 31500 360 1410
241/850 850 1360 500 23827 45000 190 2770
232/850 850 1500 515 27636 48000 260 3940
248/900 900 1090 190 5428 15300 480 370
239/900 900 1180 206 7652 17000 450 605
230/900 900 1280 280 12002 23200 400 1200
240/900 900 1280 375 16215 34000 40 1520
240/900 900 1280 375 16185 34500 340 1570
241/900 900 1420 515 25310 49000 180 3350
239/950 950 1250 224 8606 19600 430 755
249/950 950 1250 300 10701 26000 340 1020
230/950 950 1360 300 14363 28500 380 1450
240/950 950 1360 412 18228 38000 35 1880
240/950 950 1360 412 17847 39000 300 1990
241/950 950 1500 545 27892 55000 160 3540
238/1000 1000 1220 165 5405 14300 400 410
249/1000 1000 1320 315 11939 29000 320 1200
240/1000 1000 1420 412 18592 40500 280 2140
231/1000 1000 1580 462 25650 48000 280 3500
241/1000 1000 1580 580 31174 62000 150 4300
238/1060 1060 1280 165 5555 15000 380 435
239/1060 1060 1400 250 11333 26000 360 1100
249/1060 1060 1400 335 13354 32500 280 1400
240/1060 1060 1500 438 20724 45500 260 2520
249/1120 1120 1460 335 13718 34500 260 1500
240/1120 1120 1580 462 22936 49000 35 2770
240/1120 1120 1580 462 22364 50000 240 2930
238/1180 1180 1420 180 6778 18600 320 575
239/1180 1180 1540 272 13076 31000 300 1400
249/1180 1180 1540 355 15751 40500 240 1800
240/1180 1180 1660 475 25471 58500 220 3320
230/1250 1250 1750 375 21256 45000 240 2840
249/1320 1320 1720 400 18714 49000 200 2500
248/1500 1500 1820 315 14684 45000 220 1710
248/1800 1800 2180 375 20274 63000 140 2900

What is the Application of Double Row Spherical Roller Bearing?

With a broad range of bore sizes, double row spherical roller bearings are widely applied in heavy industries such as mining, steel, cement, and wind energy. Their high load carrying capacity and self-aligning capability make them ideal for applications subject to shaft deflection and misalignment.

FAQs About Double Row Spherical Roller Bearing

Q1. What Is The Difference Between Single Row And Double Row Spherical Roller Bearings?

The main difference is structure and load capacity. Double Row Spherical Roller Bearings have two rows of rollers, so they can carry much heavier radial loads and also axial loads in both directions. They also allow misalignment. In practice, spherical roller bearings are almost always double row, since single row types are rarely used.

Common cage types include steel and brass. CC is a pressed steel cage with a floating guide ring, suitable for general use. CA is a machined brass cage with inner ring flanges for heavier loads. MB and MA are brass cages guided by inner or outer ring. Different cage designs affect speed, strength, and application conditions.

“K” means the bearing has a tapered bore with a 1:12 taper. This allows the bearing to be mounted using adapter or withdrawal sleeves, making installation and removal easier, especially for larger shafts.

“K” indicates a 1:12 taper, which is standard. “K30” means a 1:30 taper, usually used in larger bearings like 240 and 241 series. The 1:30 taper provides more precise positioning and is better suited for heavy-duty and large-size applications.

Double Row Spherical Roller Bearings can accommodate misalignment and carry both radial and axial loads. Double Row Cylindrical Roller Bearings mainly carry high radial loads with high rigidity but cannot handle misalignment well and have limited axial load capacity.

Yes, BKZ Industry provides OEM and customization services. We can adjust dimensions, materials, cage types, internal clearance, and design based on your specific working conditions and application requirements. Contact us now to negotiate with the OEM service.

The minimum order depends on the size and type. Standard models usually have flexible MOQ, while large or customized bearings may require higher quantities. It’s recommended to contact us directly for accurate MOQ details.

More FAQS >>

More Bearings from BKZ Industry

Beyond Double Row Spherical Roller Bearings, BKZ Industry supplies a full range of bearing solutions, including slewing bearings, stainless steel bearings, ceramic bearings, and customized bearings designed for your specific applications.

get a quote from bkz industry bearing experts

Get a Fast Quote for Double Row Spherical Roller Bearing

Send your bearing number or application details to get a fast and accurate quotation. Our team will recommend the right solution based on your requirements.

Get a Quote

Get Quotation Now

Complete the form below for a quote, or contact us at sales@bkzindustry.com or +86 18901426056 (WhatsApp/phone).
