Spherical Roller Bearings

Spherical roller bearings consist of barrel-shaped rollers, an outer ring with a spherical raceway, and an inner ring with one or two raceways depending on whether the bearing is single row or double row. They also include a cage (steel, brass, or polyamide), optional guide rings, and seals for sealed versions. These bearings are self-aligning rolling bearings that can compensate for shaft misalignment and housing deformation. They are designed to carry very high radial loads and axial loads in both directions for double row designs, while single row designs mainly carry radial loads with limited axial load capacity in one direction. They are suitable for shock loads, vibration, and heavy-duty operating conditions.

BKZ Industry is a spherical roller bearing manufacturer with 15 years of bearing manufacturing experience and two factories. We can manufacture spherical roller bearings including open type, sealed type, single row, double row, split spherical roller bearings, and solid lubricant spherical roller bearings based on your application requirements. To extend the service life of these bearings, BKZ Industry selects high-quality materials such as GCr15 / 100Cr6 / AISI 52100 bearing steel, case hardened steel, stainless steel, pressed steel cages, machined brass cages, Nitrile rubber (NBR), and Fluoro rubber (FKM), ensuring high reliability and long service life in harsh operating conditions.

Get a Quote

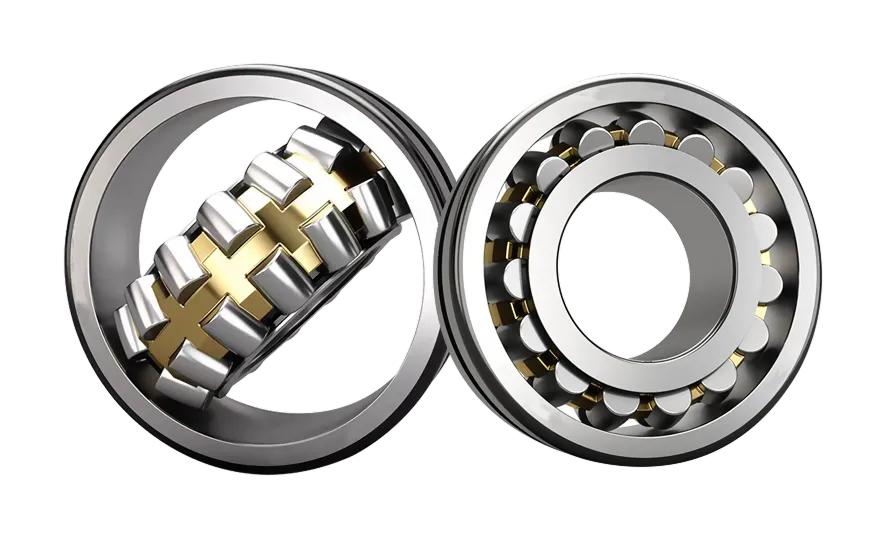

Spherical Roller Bearings For Misalignment

Features & Benefits of Spherical Roller Bearings

Spherical roller bearings are designed to handle heavy radial and axial loads while accommodating shaft misalignment. Their robust internal design makes them suitable for shock loads, vibration, and harsh operating environments. With long service life, reliable performance, and multiple design options available, they are widely used in heavy-duty industrial equipment and demanding applications.

Key Features of Spherical Roller Bearings

Self-aligning Design

With barrel-shaped rollers and a spherical raceway in the outer ring, spherical roller bearings can automatically adjust to shaft misalignment caused by shaft deflection, mounting errors, or housing deformation. This self-aligning capability reduces edge stress on the rollers and raceways, improving bearing reliability and service life.

Very High Radial Load Carrying Capacity

Spherical roller bearings use barrel-shaped rollers that create line contact with the raceways, providing a much larger contact area than ball bearings. This design allows the bearings to support very high radial loads and makes them suitable for heavy-duty equipment such as crushers, gearboxes, vibrating screens, and rolling mills.

Axial Load Capacity

Double row spherical roller bearings can carry axial loads in both directions in addition to heavy radial loads. Single row spherical roller bearings mainly carry radial loads and can support limited axial loads, typically in one direction, depending on the internal design and guide ring configuration.

Suitable for shock loads and vibration

The large roller contact area, heavy-duty internal design, and self-aligning capability allow spherical roller bearings to perform reliably under shock loads, vibration, and misalignment conditions. They are widely used in mining, construction, steel mills, and vibrating equipment.

Various Design Options

Spherical roller bearings are available in many designs including open and sealed types, steel cage, brass cage, and polyamide cage designs, solid lubricant bearings, split spherical roller bearings, and both single row and double row configurations to meet different operating conditions and installation requirements.

Benefits of Spherical Roller Bearings

Reduce Maintenance Cost

Sealed spherical roller bearings and solid lubricant bearings can operate with little or no relubrication, reducing maintenance frequency and lubrication costs. Their self-aligning capability also reduces damage caused by misalignment, further lowering maintenance costs.

Longer Service Life

Due to line contact between rollers and raceways, optimized internal geometry, and high-quality bearing materials, spherical roller bearings can achieve long service life even under heavy loads and harsh operating conditions.

Reduce Downtime

Split spherical roller bearings and adapter or withdrawal sleeve designs allow easier installation and removal without disassembling surrounding equipment, significantly reducing machine downtime during maintenance and replacement.

Reliable Performance in Harsh Operating Conditions

With heavy-duty internal design, high load capacity, sealing options, and corrosion-resistant materials, spherical roller bearings can operate reliably in dusty, wet, high-temperature, and heavy-load environments.

Easy installation and replacement options

Spherical roller bearings are available with adapter sleeves, withdrawal sleeves, and split bearing designs, making installation and removal easier, especially for large bearings and heavy equipment.

Get a Quote

Types of Spherical Roller Bearings

Spherical roller bearings are available in different designs, structures, and configurations to meet various load conditions, installation requirements, and operating environments. From single row and double row designs to split and solid lubricant bearings, each type is designed for specific applications such as heavy machinery, mining equipment, gearboxes, conveyors, and vibrating equipment.

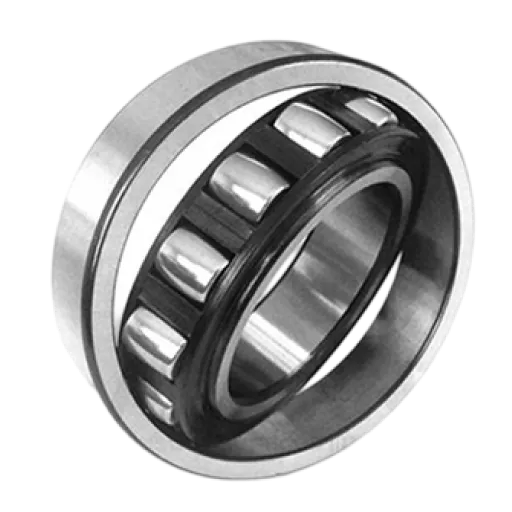

Single Row Spherical Roller Bearings

Single Row Spherical Roller Bearings

Single row spherical roller bearings are designed with one row of barrel-shaped rollers and a spherical outer raceway, allowing the bearing to accommodate shaft misalignment while supporting heavy radial loads. They are typically used in locating bearing arrangements or paired with cylindrical roller bearings in gearboxes, industrial transmissions, and heavy machinery where shaft positioning and radial load capacity are required.

Get a Quote >>

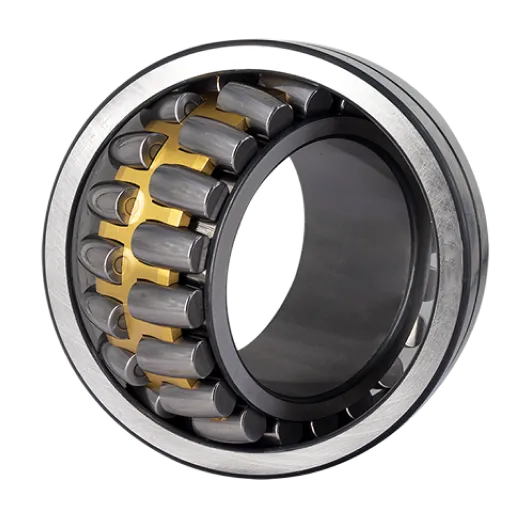

Double Row Spherical Roller Bearings

Double Row Spherical Roller Bearings

Double row spherical roller bearings are built for heavy-duty applications where very high radial loads and axial loads in both directions are present. With two rows of rollers and a robust internal structure, these bearings are widely used in mining equipment, crushers, vibrating screens, conveyors, and large gearboxes where reliability and load capacity are critical.

Get a Quote >>

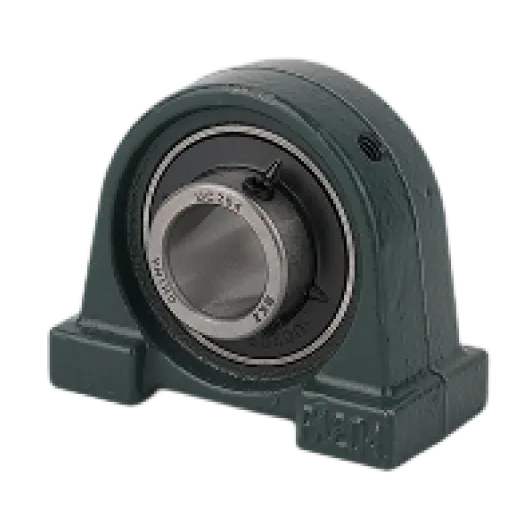

Mounted Spherical Roller Bearing Units

Mounted Spherical Roller Bearing Units

Mounted spherical roller bearings are supplied as complete bearing units with housings, simplifying installation and reducing alignment requirements. This design helps reduce installation time and maintenance work, making them a practical solution for conveyors, agricultural equipment, fans, and material handling systems where easy installation and replacement are important.

Get a Quote >>

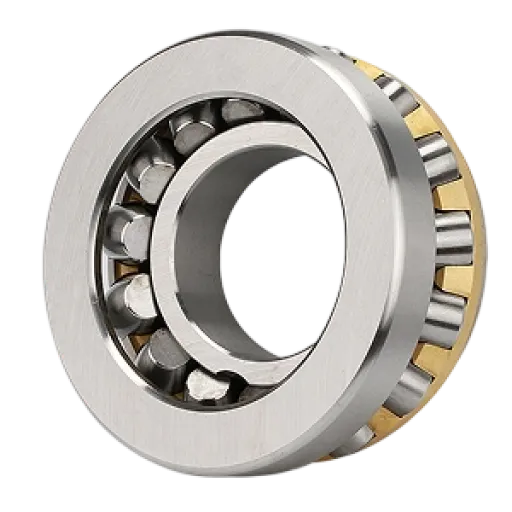

Spherical Roller Thrust Bearings

Spherical Roller Thrust Bearing

Spherical roller thrust bearings are specifically designed to support very high axial loads while accommodating misalignment. The angled roller arrangement allows the bearing to carry axial loads combined with moderate radial loads. They are commonly used in cranes, extruders, vertical gearboxes, and heavy vertical shaft equipment.

Get a Quote >>

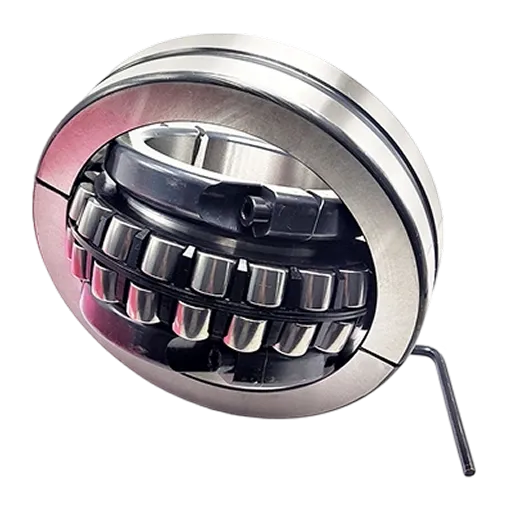

Split Spherical Roller Bearings

Split Spherical Roller Bearings

Split spherical roller bearings are designed with split inner and outer rings, allowing the bearing to be installed and removed without dismantling shafts, couplings, or surrounding equipment. This significantly reduces downtime and maintenance costs, making them ideal for large industrial equipment such as conveyors, fans, crushers, and marine shaft systems.

Get a Quote >>

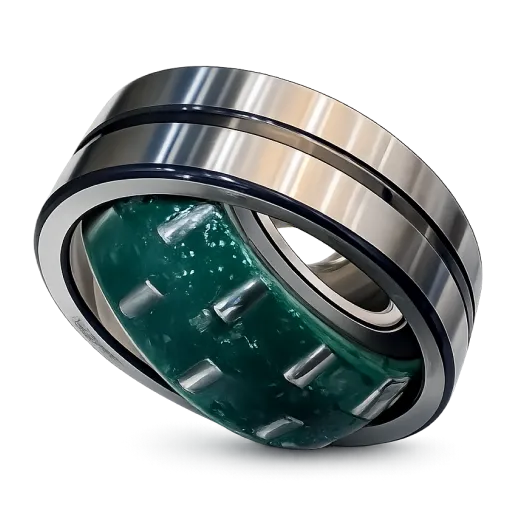

Solid Lubricant Spherical Roller Bearings

Solid Lubricant Spherical Roller Bearings

Solid lubricant spherical roller bearings are filled with solid lubricant material inside the bearing, enabling operation without frequent relubrication. This design is particularly suitable for dusty, wet, or high-temperature environments where grease lubrication is difficult, such as mining equipment, cement plants, steel mills, and paper machinery.

Get a Quote >>

*We also offer additional spherical roller bearing options such as sealed and open designs that are not listed here. Contact us for more sizes, designs, and customized bearing solutions.

Spherical Roller Bearings Size Chart

Spherical Roller Bearings are manufactured in many ISO standard sizes and series. The table below shows some commonly used dimensions for quick reference. For full size charts, stock availability, or quotation, please contact us.

Get a Quote
Bearing Part Number Bore Diameter d (mm) Outside Diameter D (mm) Bearing Width B (mm) Dynamic Load Rating Cr (kN) Static Load Rating Cor (kN) Limiting Speed (rpm) Weight (kg)
21304 20 52 16 44 70.4 2777 0.14
21305 25 65 20 55 88 2500 0.27
21306 30 78 24 66 105.6 2272 0.47
21307 35 91 28 77 123.2 2083 0.74
21308 40 104 32 88 140.8 1923 1.11
21309 45 117 36 99 158.4 1785 1.58
21310 50 130 40 110 176 1666 2.17
21311 55 143 44 121 193.6 1562 2.88
21312 60 156 48 132 211.2 1470 3.74
21313 65 169 52 143 228.8 1388 4.76
21314 70 182 56 154 246.4 1315 5.95
21315 75 195 60 165 264 1250 7.31
22205 25 65 20 55 88 2500 0.27
22206 30 78 24 66 105.6 2272 0.47
22207 35 91 28 77 123.2 2083 0.74
22208 40 104 32 88 140.8 1923 1.11
22209 45 117 36 99 158.4 1785 1.58
22210 50 130 40 110 176 1666 2.17
22211 55 143 44 121 193.6 1562 2.88
22212 60 156 48 132 211.2 1470 3.74
22213 65 169 52 143 228.8 1388 4.76
22214 70 182 56 154 246.4 1315 5.95
22215 75 195 60 165 264 1250 7.31
22216 80 208 64 176 281.6 1190 8.87
22217 85 221 68 187 299.2 1136 10.64
22218 90 234 72 198 316.8 1086 12.64
22219 95 247 76 209 334.4 1041 14.86
22220 100 260 80 220 352 1000 17.33
22222 110 286 88 242 387.2 925 23.07
22224 120 312 96 264 422.4 862 29.95
22226 130 338 104 286 457.6 806 38.08
22228 140 364 112 308 492.8 757 47.56
22230 150 390 120 330 528 714 58.5
22308 40 104 32 88 140.8 1923 1.11
22309 45 117 36 99 158.4 1785 1.58
22310 50 130 40 110 176 1666 2.17
22311 55 143 44 121 193.6 1562 2.88
22312 60 156 48 132 211.2 1470 3.74
22313 65 169 52 143 228.8 1388 4.76
22314 70 182 56 154 246.4 1315 5.95
22315 75 195 60 165 264 1250 7.31
22316 80 208 64 176 281.6 1190 8.87
22317 85 221 68 187 299.2 1136 10.64
22318 90 234 72 198 316.8 1086 12.64
22319 95 247 76 209 334.4 1041 14.86
22320 100 260 80 220 352 1000 17.33
22322 110 286 88 242 387.2 925 23.07
22324 120 312 96 264 422.4 862 29.95
22326 130 338 104 286 457.6 806 38.08
22328 140 364 112 308 492.8 757 47.56
22330 150 390 120 330 528 714 58.5
23020 100 260 80 220 352 1000 17.33
23022 110 286 88 242 387.2 925 23.07
23024 120 312 96 264 422.4 862 29.95
23026 130 338 104 286 457.6 806 38.08
23028 140 364 112 308 492.8 757 47.56
23030 150 390 120 330 528 714 58.5
23032 160 416 128 352 563.2 675 71
23034 170 442 136 374 598.4 641 85.16
23120 100 260 80 220 352 1000 17.33
23122 110 286 88 242 387.2 925 23.07
23124 120 312 96 264 422.4 862 29.95
23126 130 338 104 286 457.6 806 38.08
23128 140 364 112 308 492.8 757 47.56
23130 150 390 120 330 528 714 58.5
23132 160 416 128 352 563.2 675 71
23134 170 442 136 374 598.4 641 85.16
23136 180 468 144 396 633.6 609 101.09
23220 100 260 80 220 352 1000 17.33
23222 110 286 88 242 387.2 925 23.07
23224 120 312 96 264 422.4 862 29.95
23226 130 338 104 286 457.6 806 38.08
23228 140 364 112 308 492.8 757 47.56
23230 150 390 120 330 528 714 58.5
23232 160 416 128 352 563.2 675 71
23234 170 442 136 374 598.4 641 85.16
23236 180 468 144 396 633.6 609 101.09
23238 190 494 152 418 668.8 581 118.89
23240 200 520 160 440 704 555 138.67
23920 100 260 80 220 352 1000 17.33
23922 110 286 88 242 387.2 925 23.07
23924 120 312 96 264 422.4 862 29.95
23926 130 338 104 286 457.6 806 38.08
23928 140 364 112 308 492.8 757 47.56
23930 150 390 120 330 528 714 58.5
23932 160 416 128 352 563.2 675 71
23934 170 442 136 374 598.4 641 85.16
24020 100 260 80 220 352 1000 17.33
24022 110 286 88 242 387.2 925 23.07
24024 120 312 96 264 422.4 862 29.95
24026 130 338 104 286 457.6 806 38.08
24028 140 364 112 308 492.8 757 47.56
24030 150 390 120 330 528 714 58.5
24032 160 416 128 352 563.2 675 71
24034 170 442 136 374 598.4 641 85.16
24036 180 468 144 396 633.6 609 101.09
24038 190 494 152 418 668.8 581 118.89
24040 200 520 160 440 704 555 138.67
24120 100 260 80 220 352 1000 17.33
24122 110 286 88 242 387.2 925 23.07
24124 120 312 96 264 422.4 862 29.95
24126 130 338 104 286 457.6 806 38.08
24128 140 364 112 308 492.8 757 47.56
24130 150 390 120 330 528 714 58.5
24132 160 416 128 352 563.2 675 71
24134 170 442 136 374 598.4 641 85.16
24136 180 468 144 396 633.6 609 101.09
24138 190 494 152 418 668.8 581 118.89
24140 200 520 160 440 704 555 138.67

Applications of Spherical Roller Bearings

Spherical roller bearings are available in various sizes and designs, making them suitable for a wide range of industrial applications, especially where heavy loads, shock loads, and misalignment are present.

FAQs About Spherical Roller Bearings

Q1. Tapered Roller Bearing vs Spherical Roller Bearing: What Are Their Differences?

The biggest difference is load direction and alignment capability. Tapered roller bearings are designed for combined radial and axial loads with precise shaft positioning, while spherical roller bearings are built for heavy radial loads, shock loads, and misalignment conditions. In simple terms, tapered roller bearings are for precision and positioning, while spherical roller bearings are for heavy loads and harsh environments.

The key difference is misalignment capability and load type. Cylindrical roller bearings mainly carry very high radial loads and operate at higher speeds, but they cannot handle misalignment. Spherical roller bearings can carry heavy radial and axial loads and allow shaft misalignment and shaft deflection. So cylindrical is for high speed and rigidity, spherical is for heavy load and misalignment.

A spherical roller bearing with an adapter sleeve is designed for mounting the bearing onto a plain shaft without shoulders. The adapter sleeve allows easy installation, positioning, and removal without machining the shaft. This design is very common in conveyors, fans, and agricultural equipment where easy installation and maintenance are important.

A withdrawal sleeve is used to mount and remove spherical roller bearings on stepped shafts. The sleeve makes bearing removal much easier, especially for large bearings and heavy equipment. This design is commonly used in mining, steel mills, crushers, and gearboxes where bearings need frequent maintenance or replacement.

The most important information is the bearing number. If the bearing number is not available, then provide bore diameter, outside diameter, width, drawings, shaft size, housing size, load conditions, speed, and application. With this information, engineers can select the correct bearing, clearance, cage type, and lubrication method.

Yes, spherical roller bearings can be customized for different working conditions. Common custom options include special clearance, special cage materials, seals, lubrication holes, coatings, heat treatment, and special materials for high temperature or corrosion environments. Custom bearings are widely used in mining, cement, steel, and heavy industry equipment.

More FAQS >>

Additional Bearing Solutions

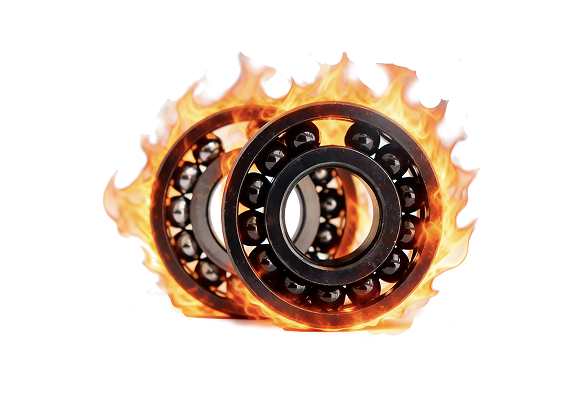

In addition to spherical roller bearings, we supply various bearing types such as slewing bearings, stainless steel bearings, ceramic bearings, and high temperature bearings, as well as customized bearing solutions for special working conditions and industrial equipment.

get a quote from bkz industry bearing experts

Get a Fast Quote for Spherical Roller Bearings

Submit your spherical roller bearing requirements or application details such as bearing number, dimensions, load, speed, shaft size, housing size, lubrication method, and working conditions. Our engineering team will provide bearing selection support, technical recommendations, and fast quotation. We help customers select the correct bearing type, clearance, cage design, and lubrication solution to ensure reliable operation and long service life.
